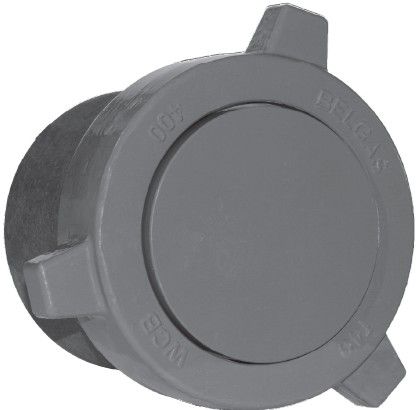

P8A00 Weldneck Flange Assembly
Collection of weld neck and blind flange assemblies offered in 3", 4", 5", 6", and 8" pipe sizes. Designed for installation on vessels requiring threaded or ACME weld neck attachments, with optional blind flange and hammer union components.
Applications:
- Flange assembly mounting
Features:
- Available in NPSL or ACME threads
- Optional blind flange and hammer union
- Pipe sizes from 3" to 8"
- Fluorocarbon or Buna-N seal material
- Tapped port option (2" NPT center)
Specifications
Weight
10-77 lb depending on size
Case/Body
Carbon Steel
Port Size
Threaded NPSL or ACME
Connection
NPSL / ACME
Connections
Weldneck with threaded or ACME hammer union
Body Material
Carbon Steel Pipe
Trim Material
Carbon Steel Hammer Nut / Blind Flange
Application(s)
Vessel access
Diaphragm Material
Fluorocarbon or Buna-N O€‘Ring
Maximum Inlet Pressure
1500 PSIG working pressure
Max Inlet Body Pressure
1500 psi
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
