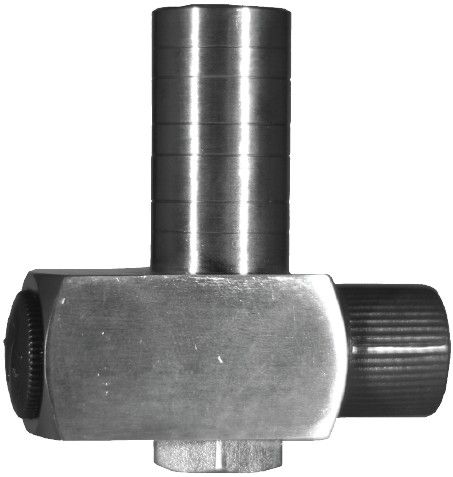

PL95 HP Sense Line Protector
High-pressure sense line protector designed to prevent instrument over-pressurization. Closes at its set point to isolate the instrument and maintain safe operating conditions.
Applications:
- Sense line protection
Features:
- Maximum pressure 5050 psig
- Set pressure 3600 psig
- Stainless steel body
- Fluorocarbon seal
Specifications
Case/Body
Stainless Steel
Port Size
1/4" NPT M x F
Connection
NPT
Connections
1/4" NPT male × female
Body Material
Stainless Steel
Application(s)
Overpressure protection
Diaphragm Material
Fluorocarbon
Output Pressure Range
Factory set at 3600 psig (adjustable 3600-5050 psig)
Maximum Inlet Pressure
5050 psig max
Max Inlet Body Pressure
5050 psig
