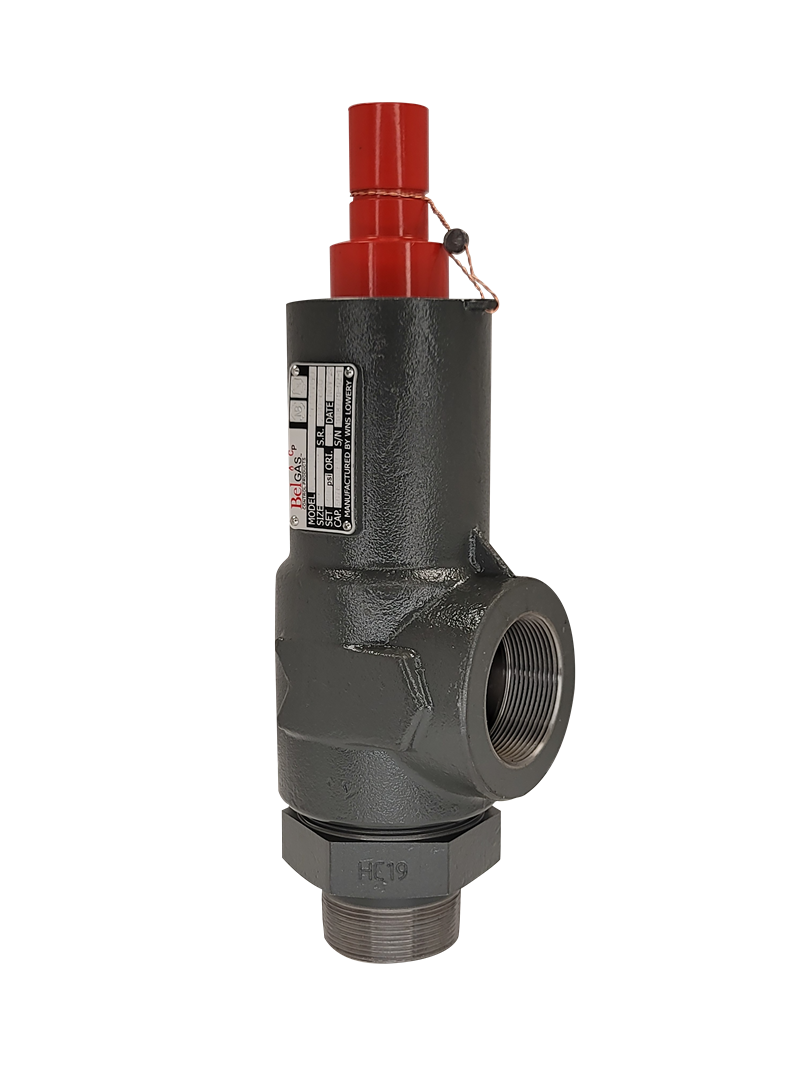

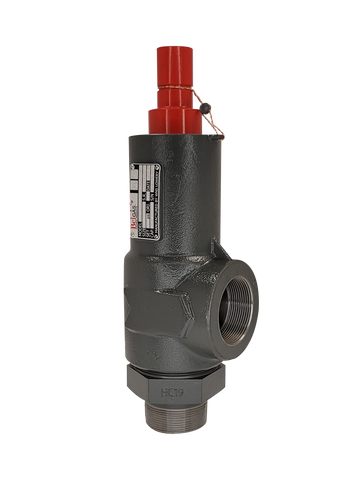

P2500 Safety Relief Valve
ASME-coded safety relief valve for general-purpose gas and liquid applications. Designed to protect separators, pressure vessels, heater treaters, compressors, and lines from exceeding safe operating pressures. National Board UV and NB stamped with corrosion-resistant internals.
Applications:
- Heater treaters
- Separators
- Compressors
Features:
- ASME & National Board certified
- Soft seat trim
- Corrosion-resistant stainless steel internals
- High-volume flow
- NACE available
Specifications
Weight
7.5 lb (1") / 18 lb (2")
Case/Body
Carbon Steel
Port Size
1", 2" NPT Outlet
Body Sizes
1/2-2" MNPT
Connection
MNPT / FNPT
Connections
MNPT inlet / FNPT outlet
Body Material
CS (4140) Bonnet / CS (A105) Seat Frame
Trim Material
Stainless Steel Internals
Application(s)
Pressure vessels
Diaphragm Material
Viton
Temperature Range(s)
-15°F to 400°F (-26°C to 204°C)
Output Pressure Range
Opens within 3% of set pressure
Maximum Inlet Pressure
15-2500 PSIG depending on orifice
Max Inlet Body Pressure
2500 psi
Valve Plug/Orifice Material
Soft Seat (Viton)
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
