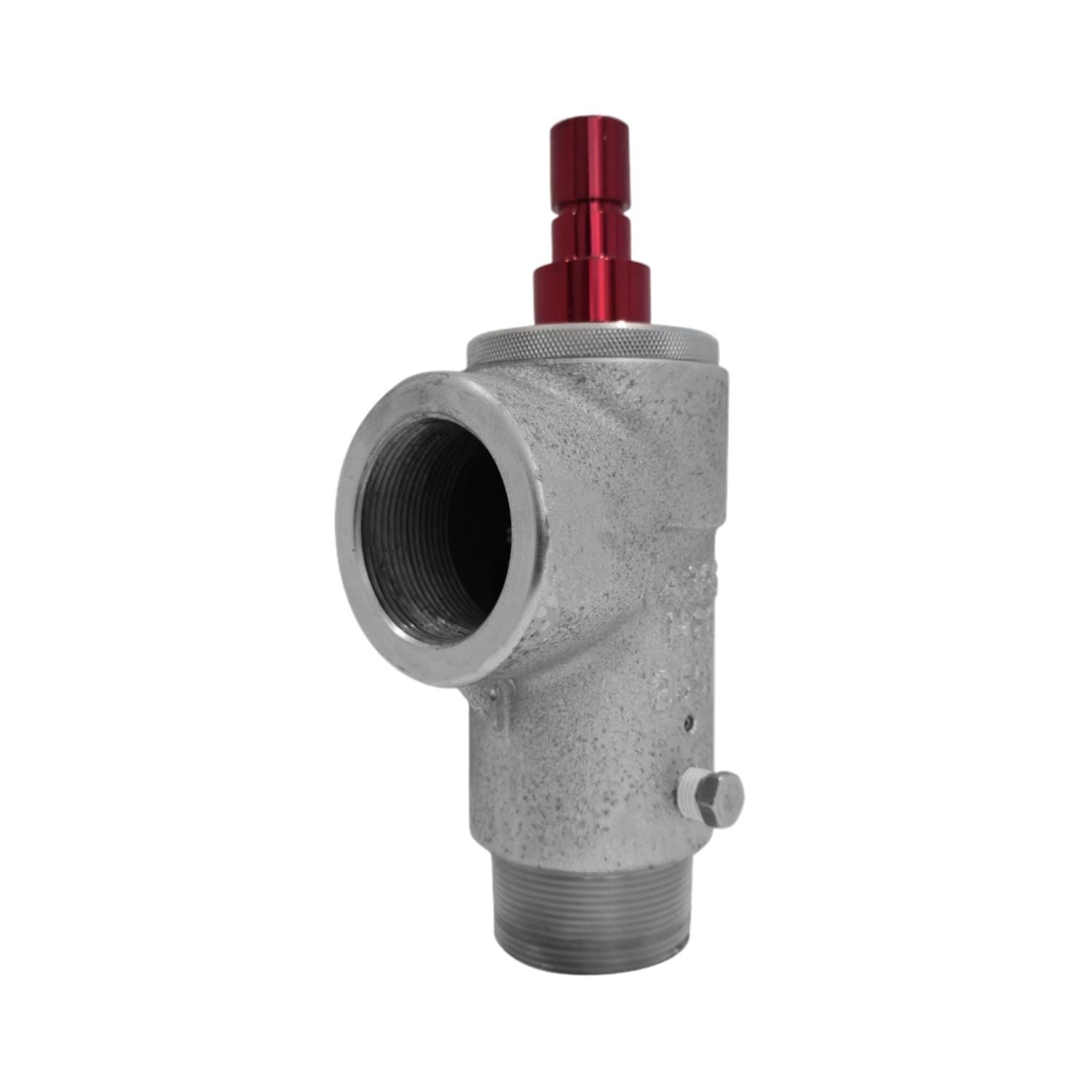

P1500 Vapor Relief Valve
Vapor relief valve designed for low-pressure applications such as glycol dehydrator reboilers, tank blanketing, BTEX safety relief, and vessel protection below 12 psi. Unit can be preset and sealed for tamper-proof operation with stainless steel internals to prevent corrosion.
Applications:
- Glycol dehydrator reboilers
- Tank blanketing
- BTEX and vessel safety relief (below 12 psi)
Features:
- 3 oz to 12 PSIG adjustable range
- All stainless steel internals
- Tamper-proof seal option
- Viton seals
- 1/4" NPT gauge port
Specifications
Weight
8.5 lbs
Case/Body
Zinc Plated A395
Port Size
2" NPT Outlet, 2" MNPT Bottom
Body Sizes
2"
Connection
FNPT / MNPT
Connections
2" FNPT x 2" MNPT
Body Material
Zinc Plated A395
Trim Material
Stainless Steel Internals
Application(s)
Pressure control
Diaphragm Material
Viton Seals
Temperature Range(s)
-15°F to 400°F (-26°C to 204°C)
Output Pressure Range
Relief opens when set pressure is exceeded
Maximum Inlet Pressure
12 PSIG max setpoint (3 oz - 12 PSIG range)
Max Inlet Body Pressure
12 psi
Valve Plug/Orifice Material
Stainless Steel Seat Plug
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
