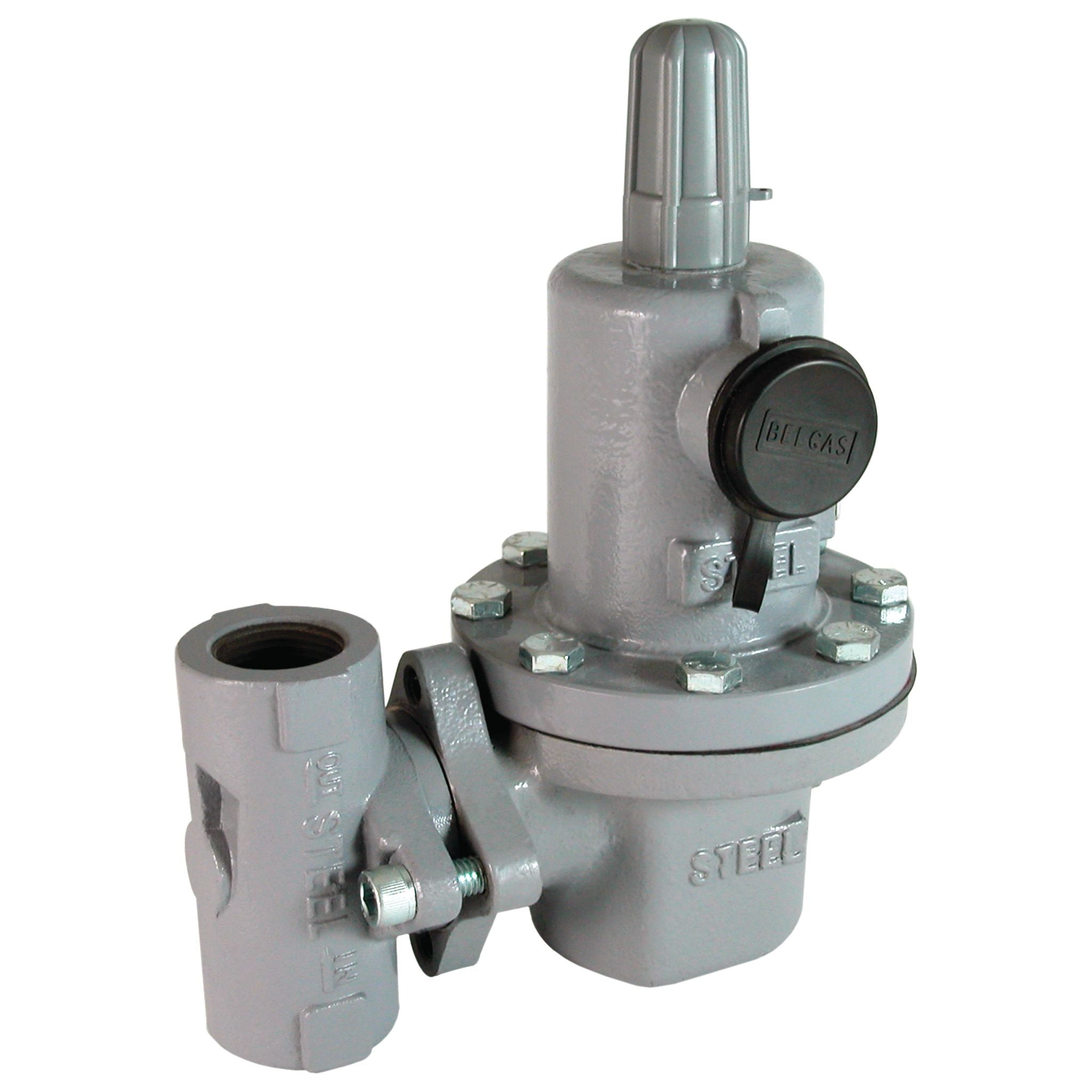

BelGAS 627 Series - R627 High Flow Relieving Gas Pressure Regulator
The BelGAS R627 relieving gas pressure regulator features an internal valve that provides reliable protection against over pressurization, and in some cases, eliminates the need for an external relief valve. As output pressure builds above the start-to-discharge point, the relief seat disengages from the diaphragm and excess pressure is relieved through the bonnet vent port. As a result, output pressure reduces and returns to initial set point.
Applications:
- Farm Tap
- Gas Gathering
- City Gates
- District Gates
Specifications
Model
R627
Body Sizes
3/4" NPT, 1" NPT, 2" NPT
Orifice Size
3/32", 1/8", 3/16", 1/4", 3/8", 1/2"
Rebuild Kits
Yes
Application(s)
Pressure Protection, Commercial, Industrial
Pilot Operated
No
Connection
NPT,
Flanged,
Socket Weld,
RTJ
Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged,
900 RTJ
Product Description
Type R627 Gas Pressure Relief Regulator
Max Inlet Body Pressure
Nylon Seat 2000 PSIG Steel, 1000 PSIG Ductile Iron, 1485 PSIG Flanged Steel, Nitrile Seat 1000 PSIG All Units, Fluorocarbon, Seat 300 PSIG All Units
