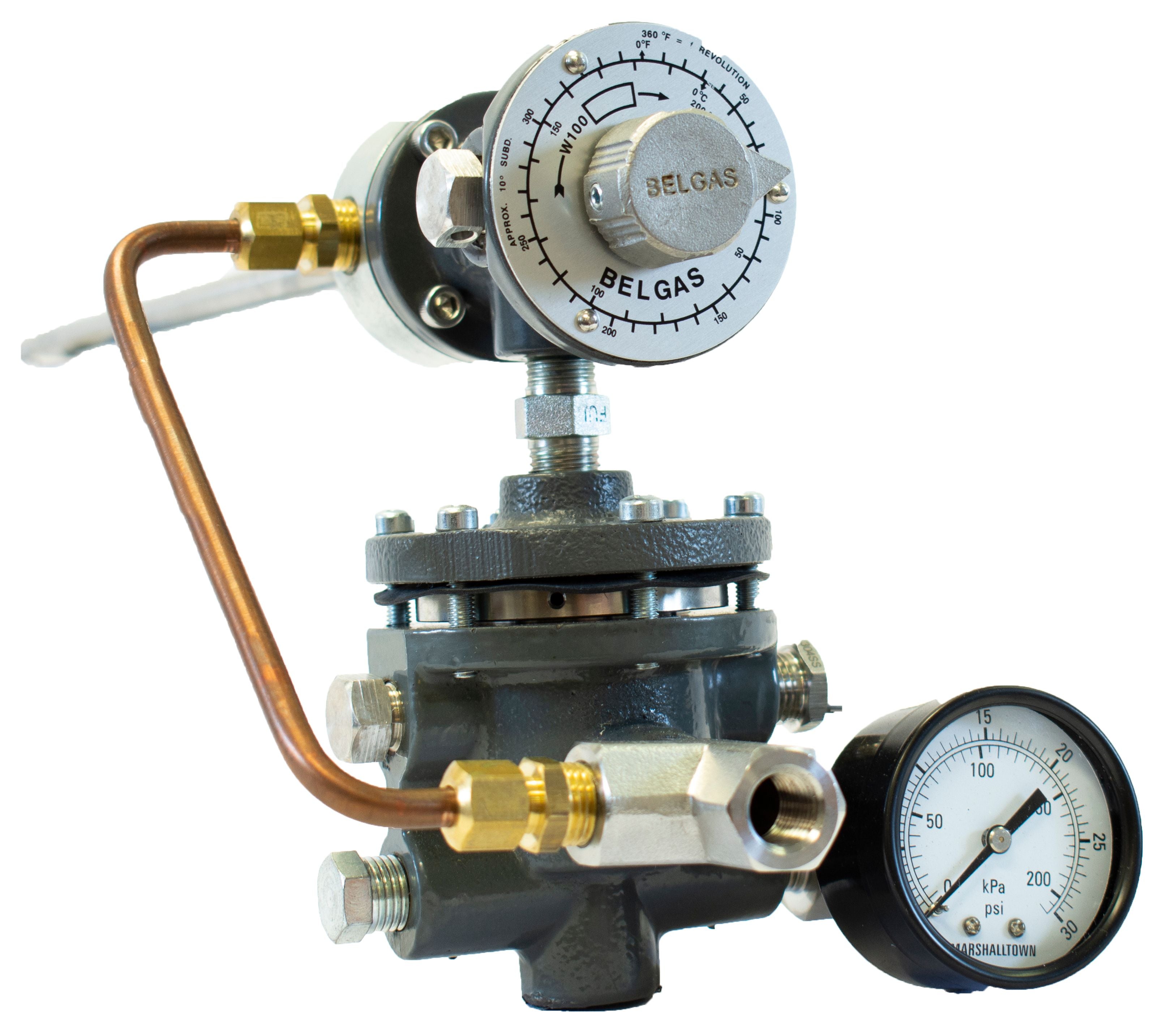

W100M Thermocouple Pilot Valve
The W100M series is a pneumatically operated high temperature shutdown device. The unit is designed to shut down the flow of gas to the burner in the case when the temperature is too high.
Applications:
- Installed into a heated vessel
- Acts as a shut-off for the vessel
- Pilot will stop the flow of gas until manually reset
Features:
- Indirect high temperature shutdown
- Pilot stops flow of gas when temperature exceeds setpoint
- Manual reset required after shutdown
- Thermostat-controlled temperature setpoint
Specifications
Model
W100M
Connections
1/4-18 NPT; 1/2-14 NPT
Application(s)
Indirect high temperature shutdown device
Pressure Range
500 PSI without thermowell; 4000 PSI with thermowell
Temperature Range(s)
Sensing Probe Temperature Range -30 to 400°F (-34 to 204°C)
Maximum Inlet Pressure
Max Working Pressure 30 psig
Body, Bonnet, Diaphragm Material
Body Ductile Iron; Elastomers Nitrile; Bonnet Ductile Iron; Sensing Element 304 Stainless Steel; Thermowell 304 Stainless Steel
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
