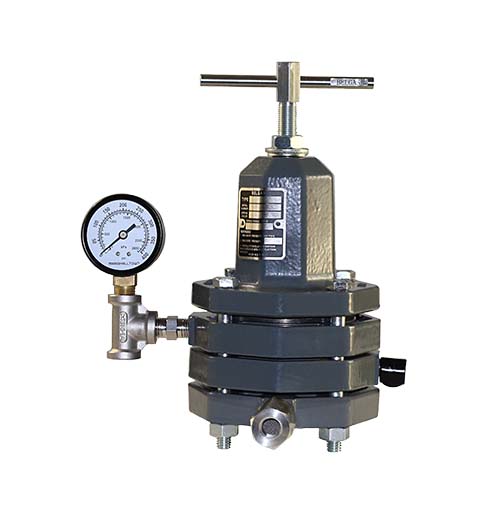

PL90 Pneumatic Pilot Regulator
Indirect-acting pneumatic pilot regulator used for instrument protection and control. Provides accurate proportional control, adjustable setpoints, and remote installation capability. Designed to work with control valves requiring overpressure protection.
Applications:
- Pressure reducing control
- Upstream or downstream pressure sensing for control valves
Features:
- Single adjusting screw for precise setpoint changes
- Accurate proportional control
- Remote installation capability
- Indirect-acting pilot design
- Protects instruments from overpressure
Specifications
Weight
Not specified
Case/Body
Ductile Iron
Port Size
1/4" NPT
Connection
1/4" NPT
Connections
1/4" NPT
Body Material
Ductile Iron
Trim Material
Stainless Steel Orifices
Application(s)
Instrument protection
Diaphragm Material
Polyurethane, Nitrile, or FKM (depending on position)
Temperature Range(s)
-20° to 180°F (Nitrile); 0° to 300°F (FKM)
Output Pressure Range
5-125 psig or 15-285 psig depending on spring selection
Maximum Inlet Pressure
285 psig
Max Inlet Body Pressure
285 psig
Valve Plug/Orifice Material
Stainless Steel
Maximum Input/Supply Pressure
285 psig
Maximum Supply Pressure (psi)
285
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
