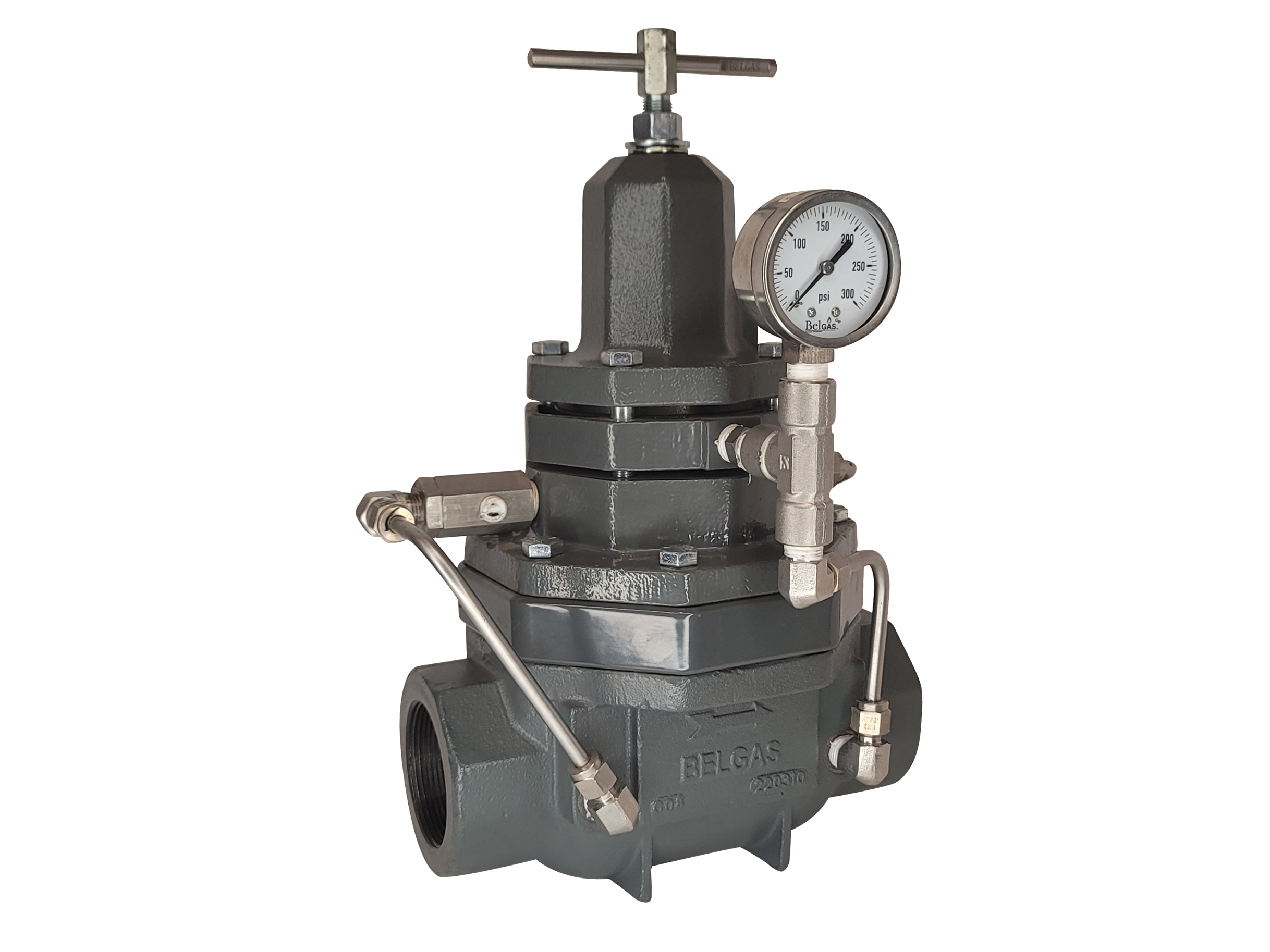

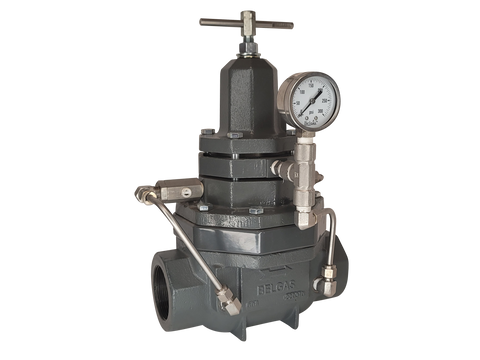

P5350 Pressure Reducing Regulator
The BelGAS CP P5300 series pressure reducing regulator has an integrally mounted pilot that maintaines a constant down stream pressure in a system. The unit can be configured to a non-venting regulator to eliminate any emissions.
Applications:
- Gas Gathering Systems
Features:
- 2" & 3" FNPT or Class 150 RF available
- Reduced & Full Port available
- Class VI bubble-tight shut-off
- Design pressure 300 PSIG
- Temperature range -20°F to +400°F
- Intermittent vent / non-bleed
- Stainless steel internal parts & fittings
- NACE MR0175 construction standard
- Non-vent version available
- Pressure range 5-125 or 15-285 PSI
Specifications
Application(s)
Compressor Stations
P5350 FLOW COEFFICIENT (Cv)
| Body Size | Trim Size | Valve Opening (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| 2 | 2 | 4.15 | 6.81 | 8.87 | 13.95 | 20.1 | 28.41 | 32.36 | 35.5 | 37.5 | 43 |
| 3 | 3 | 9 | 25.13 | 45.9 | 61.8 | 74.4 | 85.57 | 93.9 | 102.3 | 107.5 | 110.6 |
| 2 | 1-1/4 | 1.6 | 1.99 | 2.17 | 2.92 | 7.31 | 13.6 | 16.9 | 17.8 | 20.13 | 22.9 |
