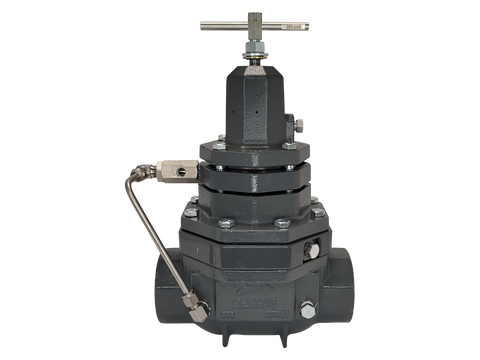

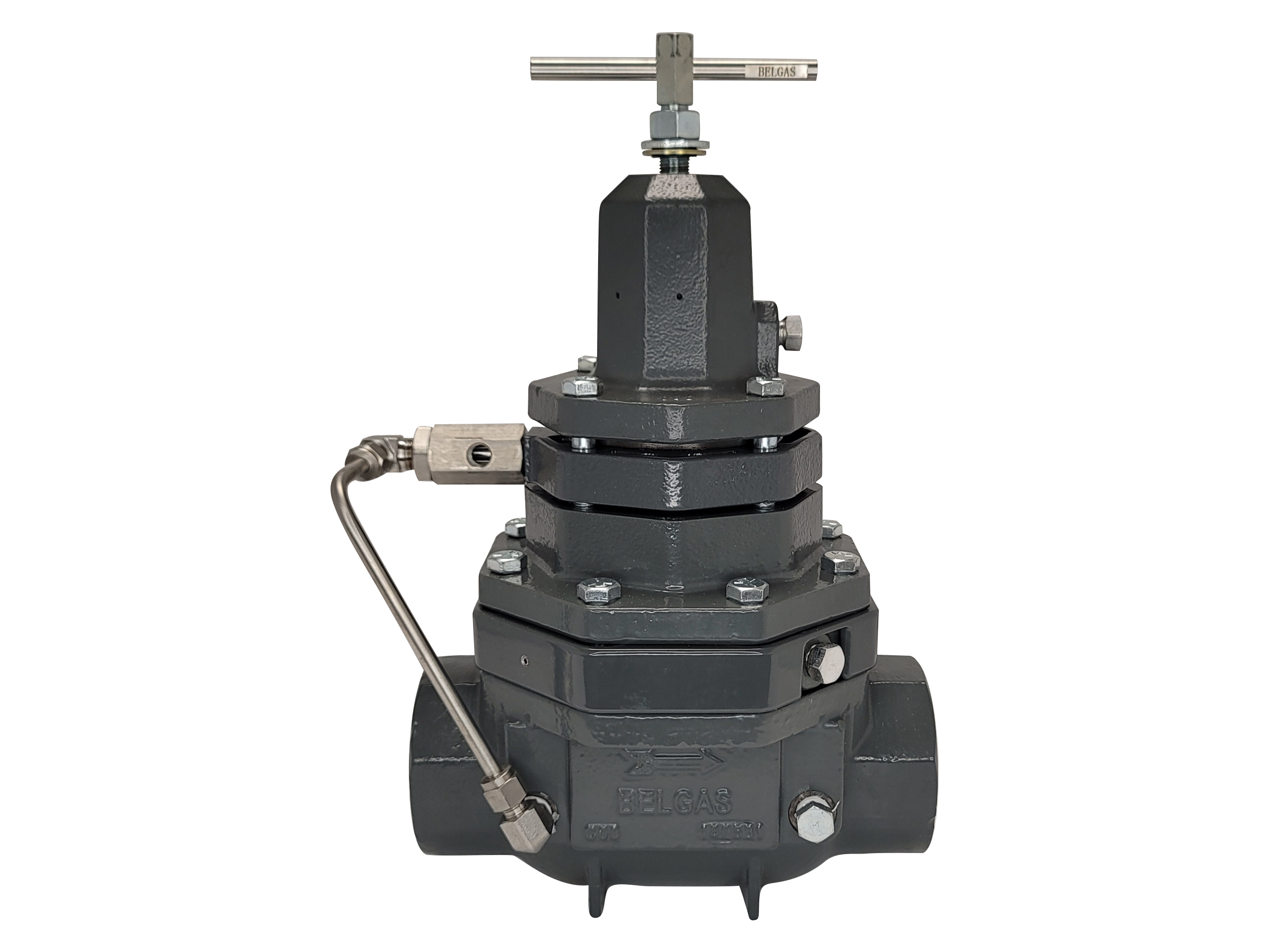

P5300 Back Pressure Regulator
The BelGAS CP P5300 series back pressure regulator has an integrally mounted pilot that maintains a constant back pressure in a system. The unit can be configured to a non-venting regulator to eliminate any emissions.
Applications:
- Heater treaters
- Compressor stations
- Gas gathering systems
Features:
- Integrally mounted pilot backpressure regulator
- Uses upstream gas to operate where applicable
- Maintains upstream pressure by relieving excess
- Suitable for a wide range of gas production services
Specifications
Connections
2” NPT
Application(s)
Separators
P5300 FLOW COEFFICIENT (Cv)
| Body Size | Trim Size | Valve Opening (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| 2 | 2 | 4.15 | 6.81 | 8.87 | 13.95 | 20.1 | 28.41 | 32.36 | 35.5 | 37.5 | 43 |
| 3 | 3 | 9 | 25.13 | 45.9 | 61.8 | 74.4 | 85.57 | 93.9 | 102.3 | 107.5 | 110.6 |
| 2 | 1-1/4 | 1.6 | 1.99 | 2.17 | 2.92 | 7.31 | 13.6 | 16.9 | 17.8 | 20.13 | 22.9 |
