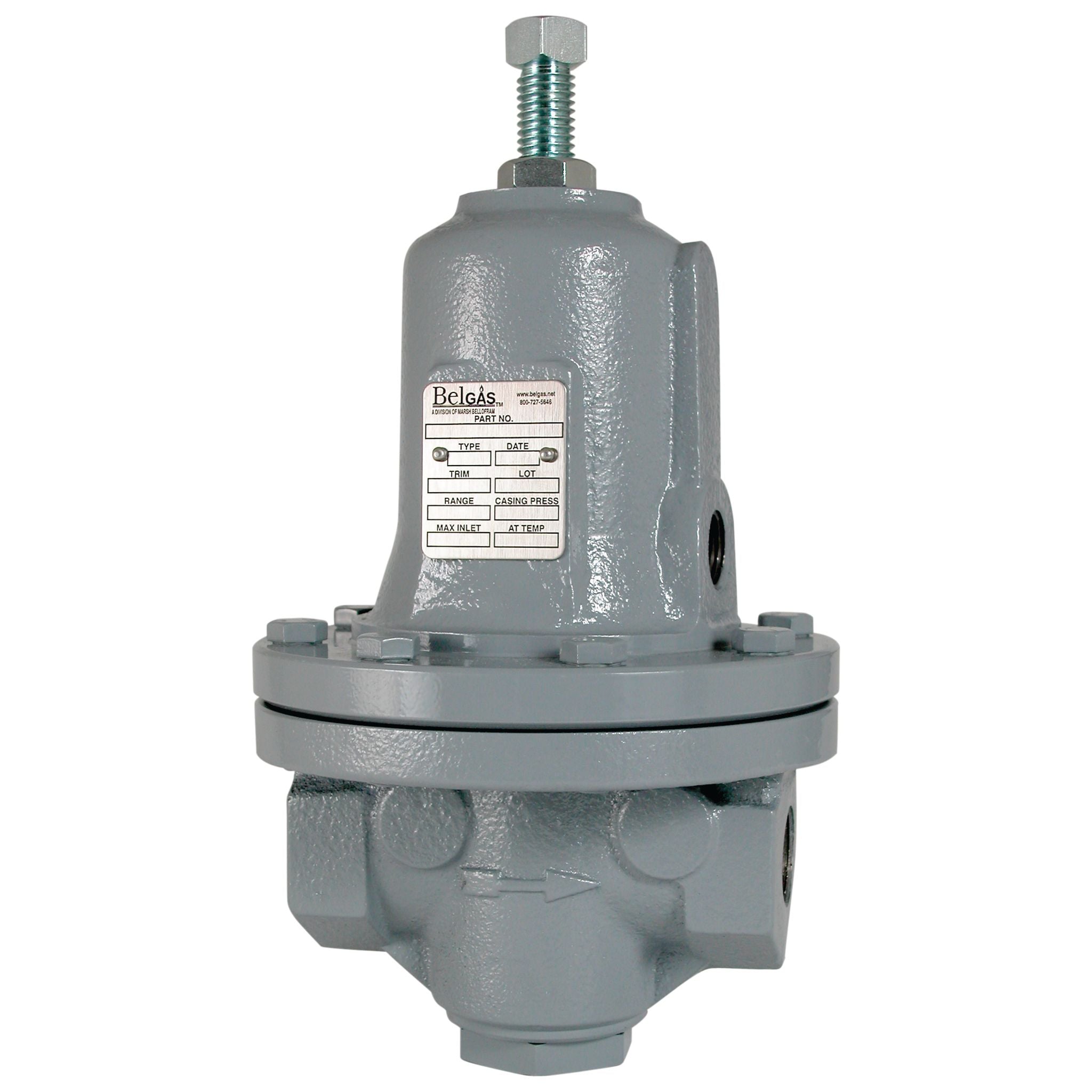

P95H Large Capacity Pressure Reducing Regulator
The BelGAS P95H is a direct-operated, large capacity pressure reducing regulator, ideally suited for use in oil and gas, process gases, steam and liquid flow applications. Available in eight different spring ranges, with metal or an elastomeric diaphragm and orifice seat materials, the compact P95H offers rugged construction, ease of operation and set pressures, leak-tight operation, and in-line maintenance capabilities.
Applications:
- Steam Injection
- In Line Gas and Liquid Control
- Chemical Boilers
- Process Heaters
Features:
- Direct-operated
- Eight different spring ranges
- Choice of metal or elastomeric diaphragm and orifice seat materials
- Large flow capabilities with set pressures
Specifications
Model
P95H
Body Sizes
1/2" NPT, 3/4" NPT, 1" NPT
Spring Range
PSIG / BAR 5 - 15 / 0.34 - 1.03 15 - 30 / 1 - 2.1 25 - 75 / 1.7 - 5.2 70 - 150 / 9 - 10.3
Application(s)
Industrial
Pilot Operated
No
Connection
NPT,
Flanged,
Socket Weld
Diaphragm Material
302SS Fluorocarbon, Neoprene, Monel
Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged
Product Description
Type P95H Large Capacity Pressure Reducing Regulator
Max Inlet Body Pressure
250 PSIG - Iron / NPT 300 PSIG - Steel / NPT 300 PSIG - Stainless / NPT
Body, Bonnet, Diaphragm Material
Body, Bonnet, Diaphragm Case Options Cast Iron, Steel, Stainless Steel Diaphragm Options 302SS Fluorocarbon, Neoprene, Monel Supply Valve Shutoff Options Metal to Metal, Metal to Elastomer
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
