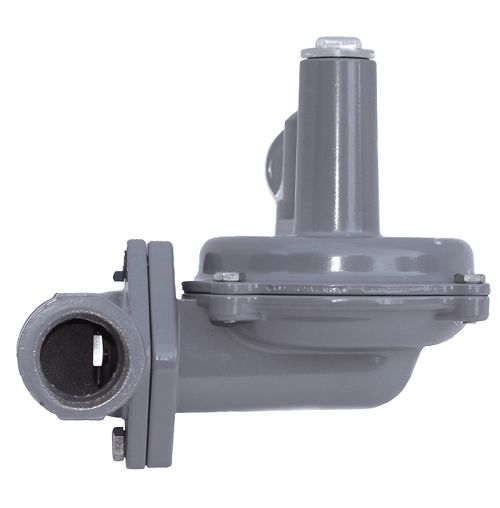

P140 Non-Relieving Gas Pressure Regulator
The P140 pressure regulator is ideal for natural gas, air, propane and general purpose gas pressure regulation. Uses include commercial, residential and light industrial for burners and unit heaters.
Applications:
- Natural Gas
- Propane
- Generators
- Small Boilers/Heaters
Features:
- Versatile
- Control Accuracy
- Compact Design
Specifications
Model
1400
Options
O2 Clean
Port Size
3/4", 3/4" X 1", 1-1/4" NPT
Orifice Size
1/8" 3/16" 1/4" 5/16" 3/8" 1/2"
Spring Range
WC / mBAR 5" - 7" / 12 - 17 6" - 8" / 15 - 20 8" - 14" / 20 - 35 12" - 28" / 30 - 70 PSIG / mBAR 1 - 2 / 69 - 137 2 - 4 / 137 - 276 (Red Cap) 4 - 5 276 - 345
Application(s)
Residential, Commercial
Diaphragm Type
Flat OR Convoluted Diaphragm
Pilot Operated
No
Body Inlet Size
3/4" x 3/4" 3/4" x 1" 1" x 1" 1-1/4" x 1-1/4"
Body Outlet Size
3/4" x 3/4" 3/4" x 1" 1" x 1" 1-1/4" x 1-1/4"
Connection
NPT
Diaphragm Material
Diaphragm Nitrile
Product Description
Type P140 Pressure Regulator- Non Relieveing
Temperature Range(s)
-20°F to 150°F
Max Inlet Body Pressure
125 PSIG (varies by orifice size)
Body, Bonnet, Diaphragm Material
Disk
