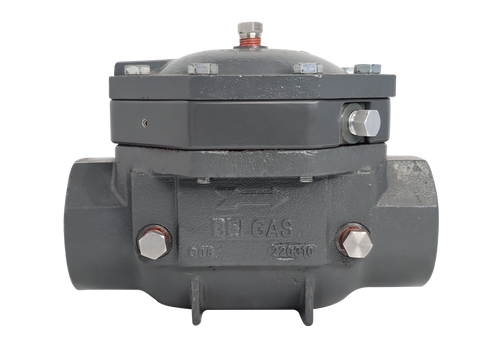

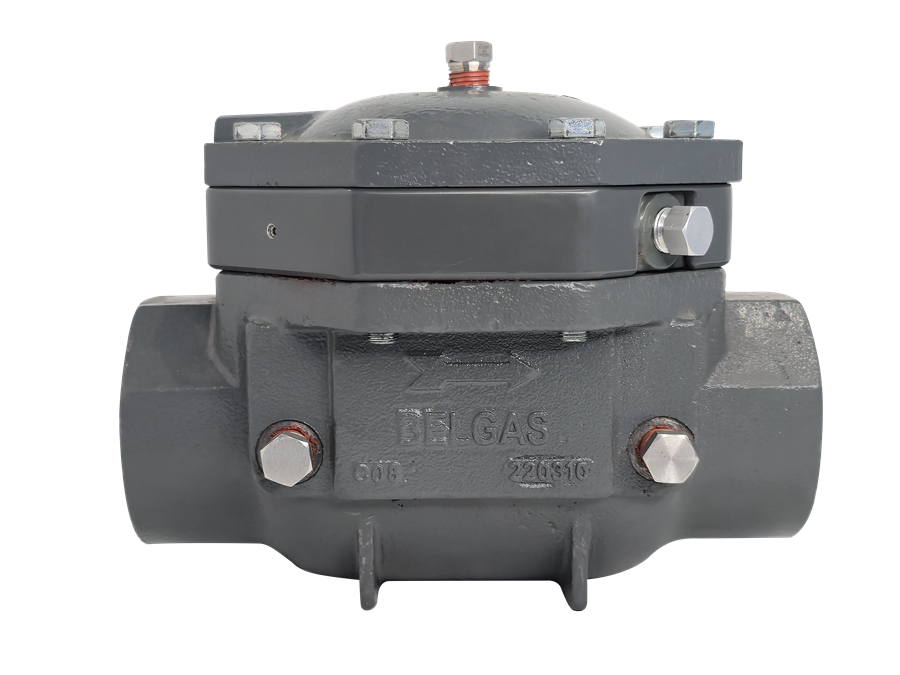

P5600 Control Valve
The BelGAS CP P5600 is a pneumatic single acting low pressure control valve. The simple design allows for easy maintenance that doesn't require the valve to be removed from the system. The soft seat provides an ANSI Class VI shut off when a signal is applied to the actuator.
Features:
- Reverse-acting low pressure control valve
- Easy, minimal maintenance with removable valve seat
- ANSI Class VI shutoff seal
- NACE construction
Specifications
Case/Body
Ductile Iron
Port Size
2" NPT, 2" 150RF
Connection
NPT or 150RF
Connections
2" NPT female or 2" 150RF
Body Material
Ductile Iron
Application(s)
Low pressure single acting control valve
Body Inlet Size
2" NPT
Diaphragm Material
Buna-N, Fluorocarbon, or HSN
Output Pressure Range
Back pressure up to 250 psig
Max Inlet Body Pressure
300 psig
Body, Bonnet, Diaphragm Material
Ductile Iron
P5600 FLOW COEFFICIENT (Cv)
| Body Size | Trim Size | Valve Opening (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| 2 | 2 | 4.15 | 6.81 | 8.87 | 13.95 | 20.1 | 28.41 | 32.36 | 35.5 | 37.5 | 43 |
| 3 | 3 | 9 | 25.13 | 45.9 | 61.8 | 74.4 | 85.57 | 93.9 | 102.3 | 107.5 | 110.6 |
| 2 | 1-1/4 | 1.6 | 1.99 | 2.17 | 2.92 | 7.31 | 13.6 | 16.9 | 17.8 | 20.13 | 22.9 |
