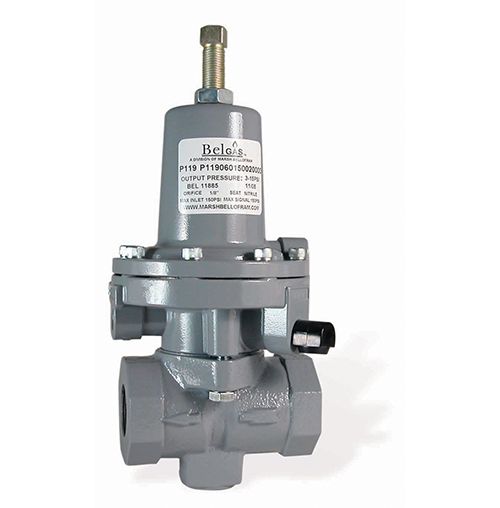

P119 Air and Gas Pressure Control Valve
The BelGAS P119 is a versatile, general purpose control valve with on-off or throttling control and inline maintenance capabilities. Units are designed for use in various industrial environments.
Applications:
- On-Off or Throttling Control
- Oil and Gas
- Petrochemical (Pipeline)
- Industrial Plant Air
Features:
- Tight shut-off at maximum body working pressure
- Easy installation
- Inline maintenance
- Steel body incorporates NACE #MR-01-75 compliant construction
Specifications
Model
P119
Port Size
3/4", 1", 1-1/4" NPT* *1-1/4 Only Available in Iron Bodies
Body Sizes
3/4, 1 or 1-1/4 NPT
Connections
Actuator Pressure Connection 1/4 NPT female
Orifice Size
1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 9/16"
Spring Range
PSIG / BAR 3 - 15 / .20 - 1.03 5 - 20 / .34 - 1.38 5 - 35 / .34 - 2.41 30 - 60 / 2.07 - 4.14
Application(s)
Industrial
Pilot Operated
No
Orifice Material
Aluminum (Standard) or 316 Stainless Steel
Connection
NPT
Diaphragm Material
Nitrile, Fluoroelastomer
Product Description
Type P119 Air and Gas Pressure Control Valve
Temperature Range(s)
With Nitrile Seat / Diaphragm: -20° to 170°F (-29° to 77°C); With Fluoro Elastomer Seat / Diaphragm: 40 to 250°F (4.4° to 121°C); Low Temperature Version: -40° to + 170°F (-40° to + 77°C)
Max Inlet Body Pressure
150 PSIG 10.3 BAR
Maximum Input/Supply Pressure
150 PSIG 10.3 BAR
Body, Bonnet, Diaphragm Material
Plated Steel
