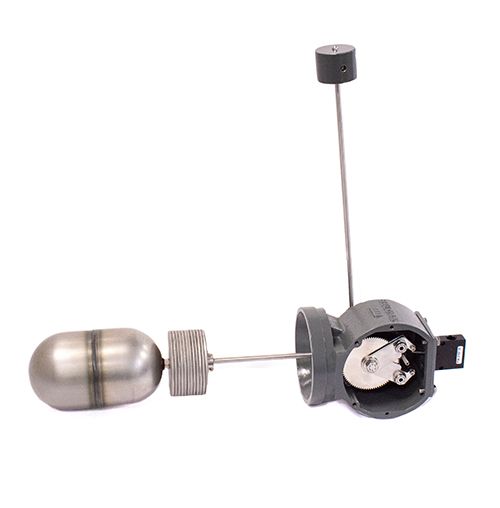

P8750 Liquid Level Controller
Low-pressure liquid level controller with pneumatic output. Uses a float and arm assembly to monitor rising or falling liquid levels and provides a no-bleed pneumatic valve response. Designed for separators, treaters, and vessels requiring reliable low-pressure level monitoring.
Applications:
- Low-pressure separators
- Vessels requiring liquid level monitoring
Features:
- No-bleed pneumatic pilot valve
- Adjustable float arm sensitivity
- Grooved body mounting option
- Stainless steel float and arm
- Available in multiple float sizes
Specifications
Weight
Not specified
Case/Body
Ductile Cast Iron or Carbon Steel
Port Size
1/4" FNPT pilot ports
Body Sizes
4"
Connection
Grooved / FNPT
Connections
Grooved body; 1/4" FNPT
Body Material
Ductile Cast Iron or Carbon Steel
Trim Material
Stainless Steel (float, arm, retainers, actuators)
Application(s)
Treater applications
Temperature Range(s)
-20°F to 212°F (-20°C to 100°C); Floats up to 250°F depending on material
Output Pressure Range
Pneumatic output 100 or 250 psi
Maximum Inlet Pressure
500 psig working pressure
Max Inlet Body Pressure
500 psig
Valve Plug/Orifice Material
Stainless Steel
Maximum Input/Supply Pressure
100 PSIG (250 PSIG optional)
Maximum Supply Pressure (psi)
100 / 250
