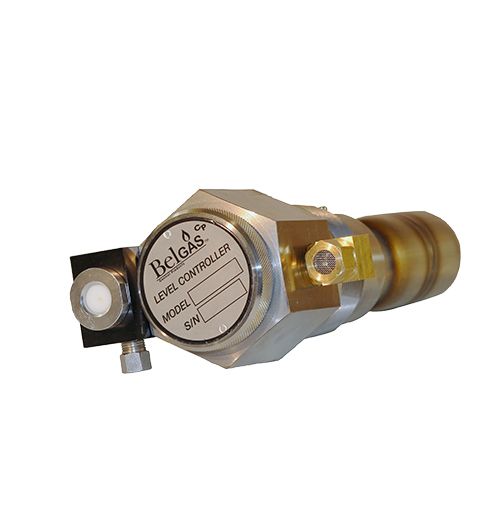

P8600 Pneumatic Liquid Level Controller
The BelGAS CP P8600 Series is a snap-acting liquid level switch primarily used for gas compressor scrubber level applications. The pneumatic signal (30-70 PSI) is activated by the P8600 float and then used to open/close a dump valve or similar devices.
Applications:
- Other level control applications of non-pressurized vessels
Features:
- Simple repair and maintenance
- Manual push button override
- NACE MR0175 Compliant
Specifications
Model
P8600
Connections
Process Connection 2 NPT; Pneumatic Connection 1/8 NPT
Application(s)
Primarily for gas compressor scrubber level control
Pressure Range
Max Working Pressure 1500 psig; Supply Pressure, Pneumatic Signal 30 psig (minimum) to 70 psig
Temperature Range(s)
-15°F to 300°F, 400°F available (Operating Temperature, Fluorocarbon elastomer); -30°F to 250°F (Nitrile elastomer)
Body, Bonnet, Diaphragm Material
Float 316 stainless steel; Arm with counter weight 316 stainless steel; Wire 316 stainless steel; Body Nickel plated carbon steel 304 stainless steel; Nozzle Stainless steel; Seat Fluorocarbon Nitrile; Cap Stainless steel; Valve housing 6061 Aluminum; Valve Diaphragm Fluorocarbon Nitrile; Valve stem Stainless steel; Valve plug Fluorocarbon Nitrile; O-Rings Fluorocarbon Nitrile
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
