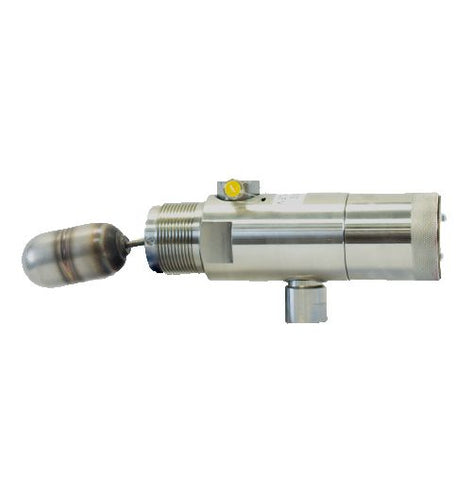

P8400 Series Liquid Level Controller
The BelGAS CP P8400 Electric Liquid Level Switch is ideal for a high level or low level safety switch. The unit is comprised of a counter-weight magnet and float system that is self contained to eliminate any leak path and emissions.
Applications:
- Other level control applications for non-pressurized vessels
Features:
- NACE MR0175 Compliant
- Manual override switch available
- Various electrical switch options
- External Cage with 1” NPT ports for ease of installation
- 1.5” and 2” NPT external thread mounting options
- Annulus Plug to limit corrosive media from entering the body chamber
- Customizable arm lengths depending on the customer's application
Specifications
Model
P8400
Connections
Adaptor Threads 0.5" NPT; External Cage Threads 1" NPT; Mounting Threads 1.5" NPT or 2" NPT
Application(s)
Gas Compressor Scrubbers
Pressure Range
Maximum Pressure 1500 PSIG
Temperature Range(s)
250°F - Standard and High Amp; 400°F - High Temperature
Body, Bonnet, Diaphragm Material
Annulus Plug Delrin; Body Stainless Steel; Counterweight Stainless Steel; External Cage Steel; Float Stainless Steel or Polyurethane; Float Arm Stainless Steel; Pin Stainless Steel; Spacer Stainless Steel
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
