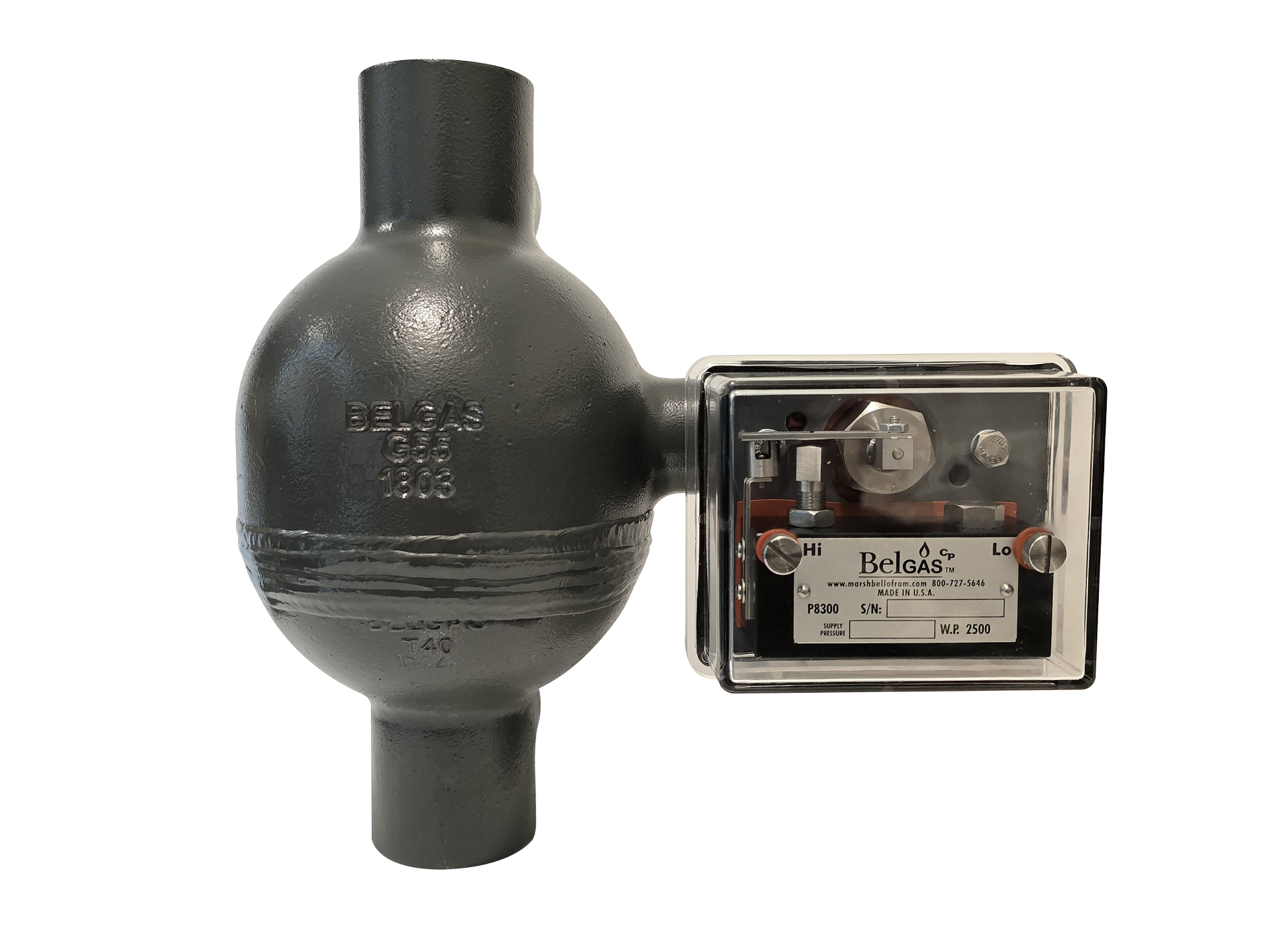

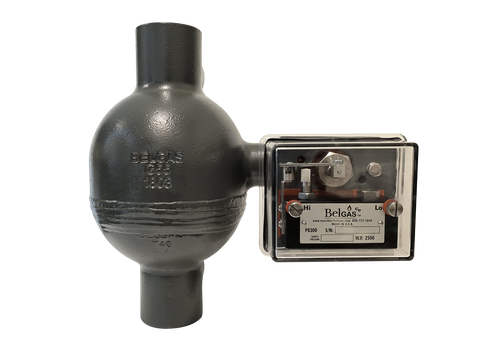

P8300 Series Pneumatic Liquid Level Switch
The BelGAS CP P8300 Pneumatic Liquid Level Switch is designed for safety shutdown systems within the oil and gas industry. The unit can be configured as a safety high or low switch and can be configured in either a left or right hand mount.
Features:
- Unit: Pneumatic
- Control: High or Low Level Alarm
- Body Configuration: Left or Right Hand
- Supply Pressure Nozzle: 30 - 60 psi
- Sour Gas Service: Standard with NACE MR0175 compliant parts.
- Mounting Options: Vertical Mounting Options
Specifications
Model
P8300
Weight
~35lbs
Body Sizes
Displacer Diameter 4”
Connections
Process Connection 1” NPTF; Connection Size 1/4” NPTF
Application(s)
Safety Shutdowns for Oil & Gas Industry Processing Equipment
Pressure Range
Max. Working Pressure 2500 psi; Supply Pressure 30 - 60 psi
Temperature Range(s)
Operating Temperature -20°F to 400°F
Body, Bonnet, Diaphragm Material
External Body Cast Steel; Body Block Carbon Steel; Nozzle Block Aluminum; Torque Tube Monel; Displacer Stainless Steel; Flapper Assembly Stainless Steel; Nozzle Stainless Steel; Elastomers Fluorocarbon
