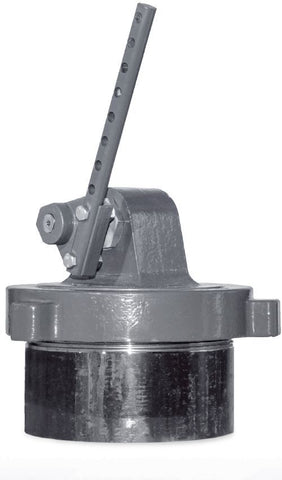

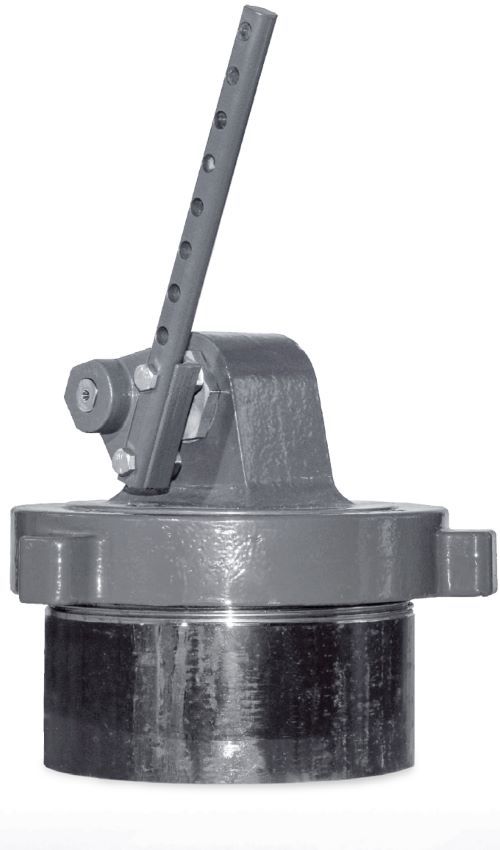

P8000 Hammer Union with Trunnion Assembly
Hammer union with trunnion assembly designed to operate a mechanical dump valve. Uses a float and float arm system to actuate the lever and trigger liquid dump operations.
Applications:
- Knockouts
Features:
- Multiple link arm lengths (18", 24", 32")
- Weldneck sizes in 5" and 8" lengths
- Threads available in NPSL or ACME
- Seal options: Nitrile, Fluorocarbon, or HSN
- Durable carbon steel bonnet and hammer nut
Specifications
Weight
Not specified
Case/Body
Carbon Steel
Port Size
NPSL or ACME threads
Body Sizes
5" Weldneck, 8" Weldneck
Connection
NPSL / ACME
Connections
Hammer union; threaded weldneck
Body Material
Carbon Steel
Trim Material
Stainless Steel (linkage, caps)
Application(s)
Separators
Output Pressure Range
Mechanical actuation via trunnion assembly
Maximum Inlet Pressure
500 psig max operating pressure
Max Inlet Body Pressure
500 psig
Valve Plug/Orifice Material
N/A (mechanical linkage system)
Maximum Input/Supply Pressure
Mechanical actuation
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
