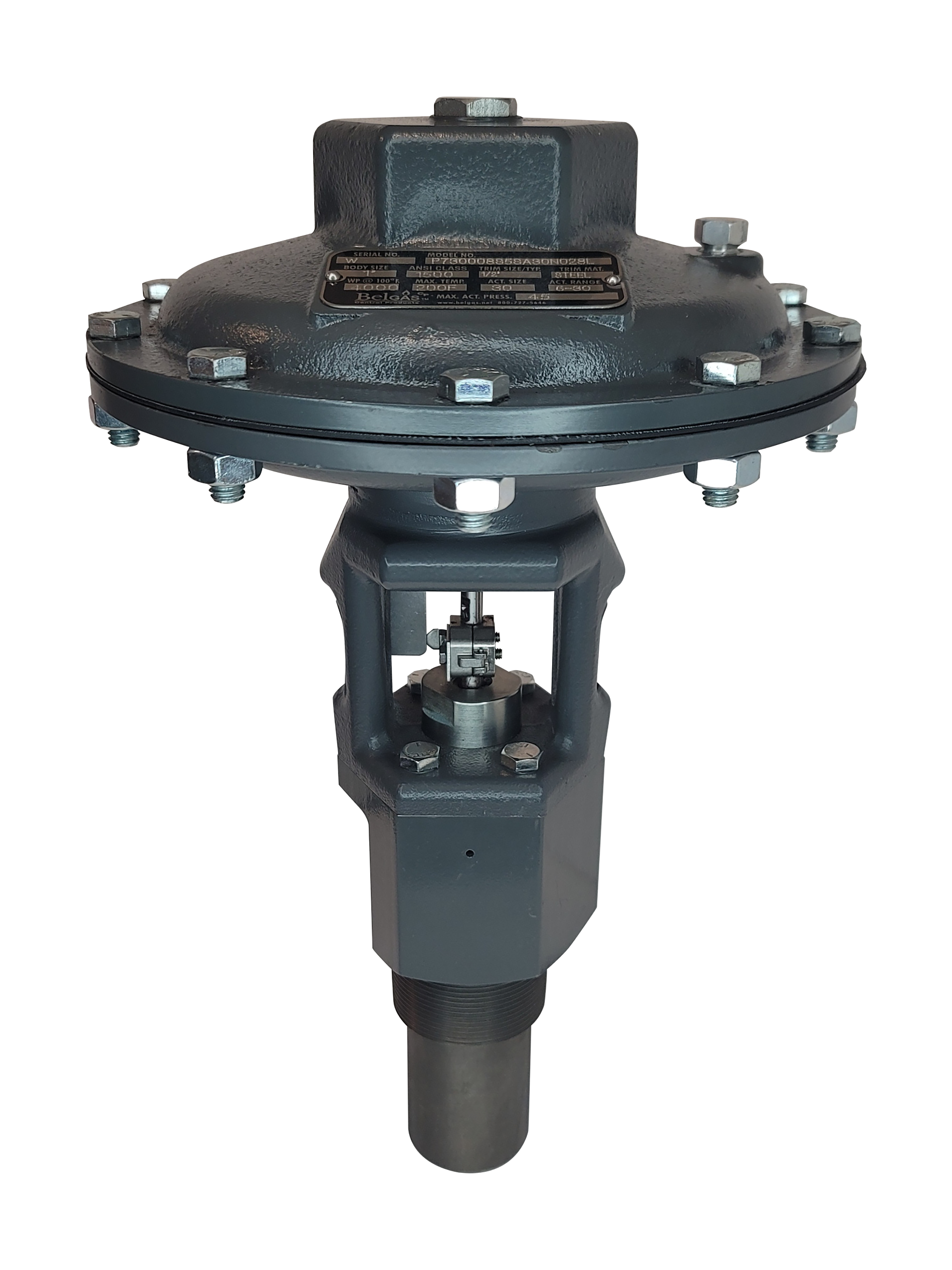

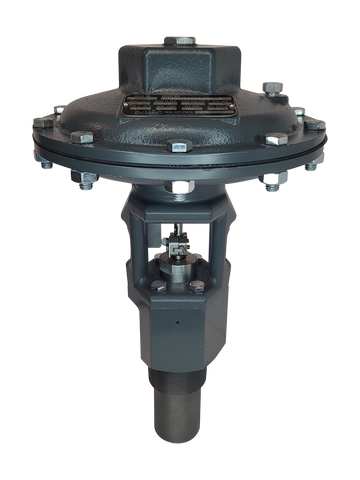

P7300 Non-Freeze Dump Valve
Pneumatically controlled, high-pressure dump valve designed for liquid level control. Automatically opens and closes using pneumatic input from BelGAS controllers. Suitable for separators, scrubbers, and process vessels with pressures up to 2000 psig. Offers simple maintenance, selectable trim sizes, pressure-warning hole, and NACE material options.
Applications:
- Separators
- Scrubbers
- Process vessels
- Treaters
- Knockouts
Features:
- Non-Freeze Design: The trim is fully inside the vessel to help prevent freezing
- 1” FNPT Inlet and Outlet connections and 2” MNPT Vessel mount connection
- Trim Variety: Nominal (Linear) and Quick Opening (On/Off) trim options are available
- The trim is available in Steel, Hardened Stainless Steel, or Tungsten Carbide
- Sour Gas Service: NACE MR0175 compliant materials are available
Specifications
Trim
Linear and Quick Open trim options
Model
P7300
Weight
Not specified
Case/Body
Aluminum (bonnet and housing)
Port Size
1" MNPT or 1" NPT
Body Sizes
1" MPNT, 1" NPT
Connection
MNPT or FNPT
Connections
1” FNPT Inlet/Outlet; 2” MNPT Vessel Mount
Body Material
Plated Steel
Trim Material
Stainless Steel & Urethane or Stainless Steel & PTFE
Application(s)
Gas Processing units
Pressure Range
Max Working Pressure 4000 PSI
Diaphragm Material
Nitrile
Temperature Range(s)
Buna-N: -20 to 250°F (-29 to 121°C); Viton: -15 to 400°F (-26 to 204°C)
Output Pressure Range
500, 1500, or 2000 psig supply pressure options
Maximum Inlet Pressure
2000 psig
Max Inlet Body Pressure
2000 psig
Valve Plug/Orifice Material
Stainless Steel
Maximum Input/Supply Pressure
Max Actuator Pressure 45 PSI
Maximum Supply Pressure (psi)
70
Body, Bonnet, Diaphragm Material
Body Carbon Steel; Stuffing Box Carbon Steel or 316 Stainless Steel; Cage Carbon Steel or 316 Stainless Steel; Seat Tool Steel or 17-4PH Stainless Steel or TC; Stem SS/TC or 316 Stainless Steel
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
