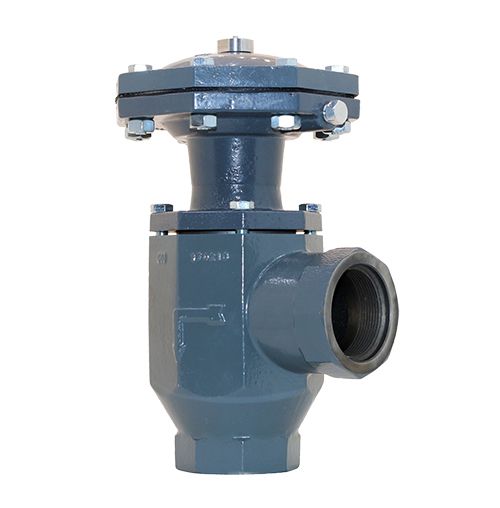

P4500 Treater Valve
Diaphragm-balanced motor valve designed to dump low-pressure water or oil using a 10 psig minimum pneumatic signal. Features simple maintenance, balanced diaphragm design, and reliable operation in metering, separators, and water knockout applications.
Applications:
- Meters
- Water knockouts
- Separators
Features:
- 10 psig minimum pneumatic signal
- Diaphragm-balanced design for stable operation
- Simple repair and maintenance
- 2-inch NPT line size
- ANSI Class VI shutoff
Specifications
Weight
Not specified
Case/Body
Ductile Iron
Port Size
2" NPT
Body Sizes
2" x 2"
Connection
Female NPT
Connections
Female NPT
Body Material
Ductile Iron
Trim Material
Stainless Steel (cage options: ductile iron or acetal)
Application(s)
Water or oil dump control
Diaphragm Material
Nitrile or Fluorocarbon
Temperature Range(s)
Up to 225°F (107°C)
Output Pressure Range
Flow controlled by pneumatic signal acting on balanced diaphragm
Maximum Inlet Pressure
250 psig
Max Inlet Body Pressure
400 psig
Valve Plug/Orifice Material
Nitrile, Polyurethane, or Fluorocarbon seat options
Maximum Input/Supply Pressure
10-35 psig pneumatic signal
Maximum Supply Pressure (psi)
35
P4500 FLOW COEFFICIENT (Cv)
| Body Size | Trim Size | Valve Opening (%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| 2" | 1.5 | 4.76 | 6.59 | 10.1 | 12.47 | 14.5 | 17 | 19.32 | 21.3 | 22.26 | 23.6 |
