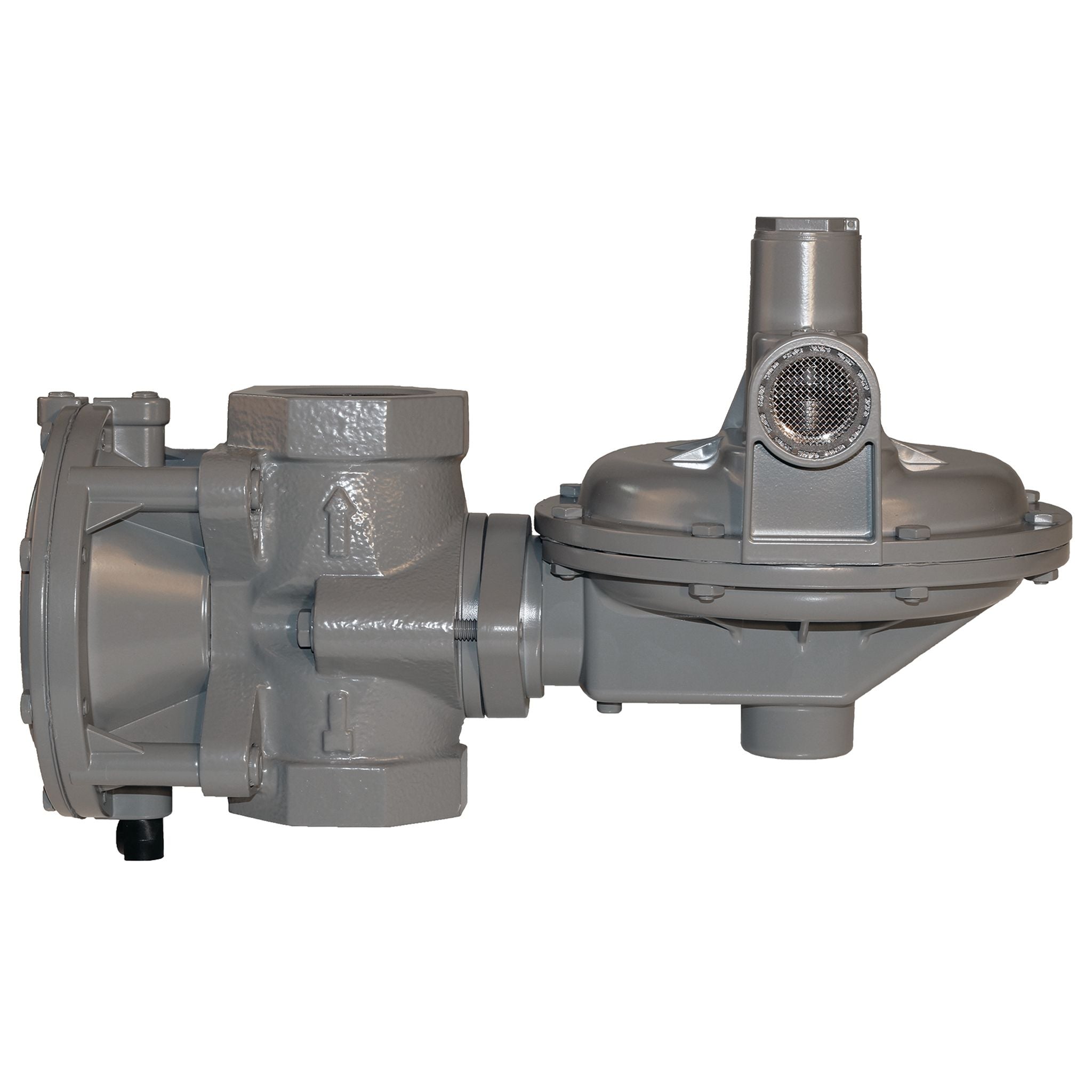

BelGAS 300 Series - P303, P303H Pressure Reducing Regulators with Integrated Monitor
The BelGAS P303 and P303H gas pressure reducing regulators are available with a true monitor regulator, which acts independently of the main regulator. The monitor provides equivalent overpressure protection when compared to a standard two-regulator monitor setup. Should one regulator fail, the other regulator provides control and overpressure protections. The regulator's fast action reduces the risk of shock from abrupt changes in downstream conditions and can help to prevent safety equipment from causing unnecessary, expensive, and time-consuming operation shutdowns.
Applications:
- Compressors
- Gas Engines
- Service Regulators
Features:
- Minimizes sudden downstream load changes
- Wide pressure range
- Integrated monitoring
Specifications
Model
P303
Port Size
1.5", 1.5" X 2", 2" NPT
Body Sizes
1.5", 1.5" x 2"
Connections
End Connections NPT 2" 125 FF Flange
Orifice Size
1/4" 3/8" 1/2" 3/4"
Spring Range
P303 4 - 6 WC / 9.96 - 15 - Red 5 - 8.5 WC / 12 - 21 - Silver 8 - 14 WC / 19.93 - 35 - Blue 12 - 28 WC / 30 - 70 - Green P303H 1 - 1.6 PSIG / .07 - .11 - Black 1.5 - 2.25 PSIG / .10 - .15 - Olive
Seat Material
Nitrile
Application(s)
Pressure Protection, Commercial, Industrial
Pilot Operated
No
Orifice Material
Aluminum
Connection
NPT,
Flanged
Diaphragm Material
Nitrile
Flange Type
125 FF Flanged,
150 RF Flanged
Product Description
P303, P303H Pressure Reducing Regulators
Max Inlet Body Pressure
P303 - 60 PSIG (Varies on Orifice Size) P303H - 125 PSIG (Varies on Orifice Size)
Maximum Outlet Pressure
15 PSIG
Body, Bonnet, Diaphragm Material
Adjusting Screw: Aluminum Body: Ductile Iron Bonnet: Aluminum Closing Cap: Zinc Diaphragm: Nitrile Lower Casing: Aluminum Molded Seat Assembly: Nitrile Orifice: Aluminum
