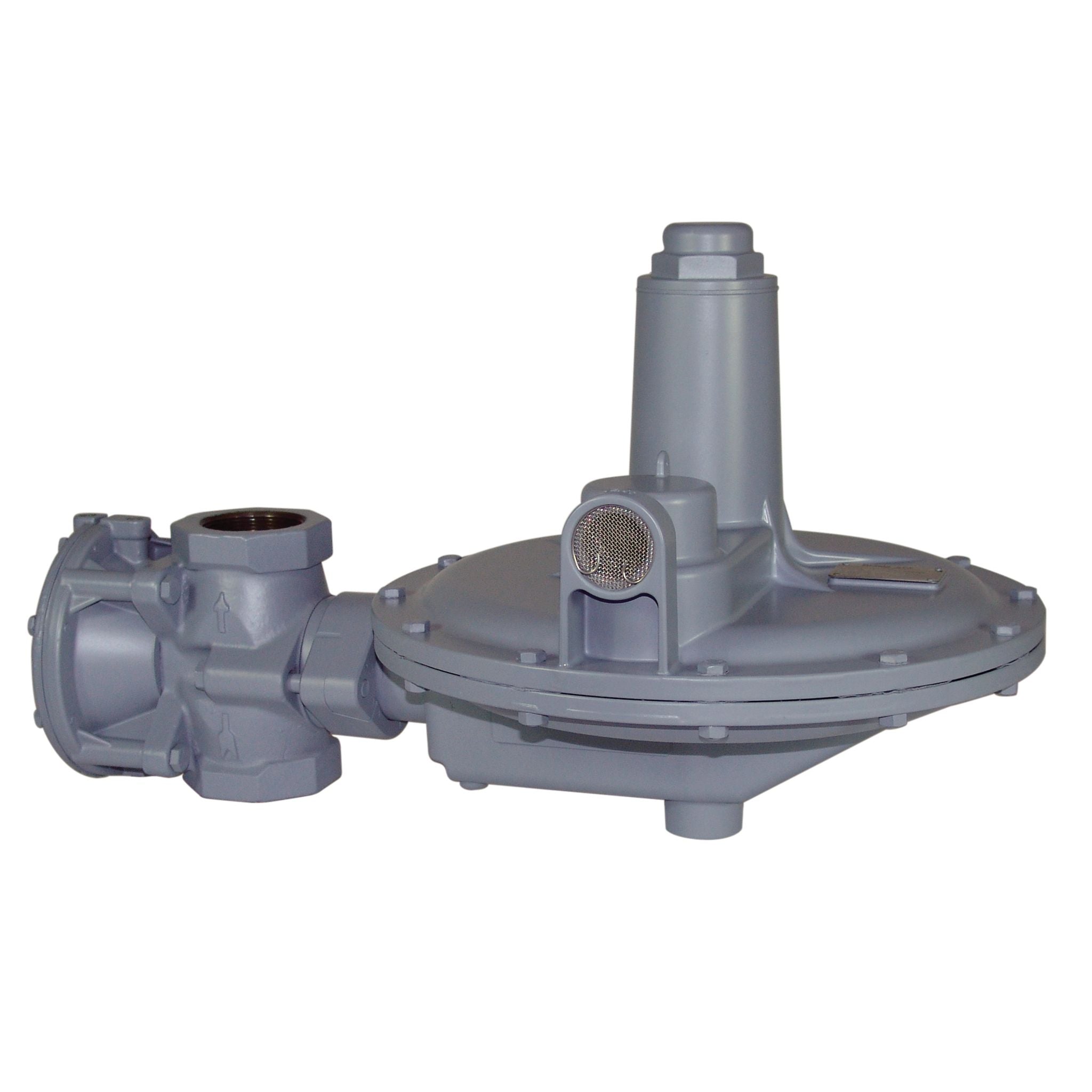

BelGAS 200 Series - P203 Pressure Reducing Regulator with Integrated Monitor
The BelGAS P203 and P203H gas pressure reducing regulators are available with a true monitor regulator, which acts independently of the main regulator. The monitor provides equivalent overpressure protection when compared to a standard two-regulator monitor setup. Should one regulator fail, the other regulator provides control and overpressure protection. The regulator's fast action reduces the risk of shock from abrupt changes in downstream conditions and can help to prevent safety equipment from causing unnecessary, expensive, and time-consuming operation shutdowns.
Applications:
- Commercial/industrial/service
- Gas engine control
- Gate applications
Features:
- Minimizes sudden downstream load changes
- Integral monitoring
- Internal relief
- Wide flow capacities
Specifications
Model
P203
Port Size
1.5", 1.5" X 2", 2" NPT
Orifice Size
1/4", 3/8", 1/2", 3/4", 1", 1-3/16"
Spring Range
O, P or S Version Only use with G0 Monitor / 2 - 4.5 " use with G1 Monitor / 3.5 - 6.5" use with G1 Monitor / 5 - 9" use with G2, R0, R1, B0 Monitor / 8.5 - 18" use with R2, B1, SO Monitor / 14 - 30" H, P or S Version use with B2, S1 Monitor / 1 - 2 PSIG use with S2, S3 Monitor / 1.5 - 3.25 PSIG
Seat Material
Nitrile
Application(s)
Pressure Protection, Commercial, Industrial
Pilot Operated
No
Orifice Material
Aluminum
Connection
NPT,
Flanged
Diaphragm Material
Nitrile
Flange Type
125 FF Flanged,
150 RF Flanged
Product Description
P203 Pressure Reducing Regulator
Temperature Range(s)
-20° to 180°F (-29° to 82°C)
Max Inlet Body Pressure
125 PSIG (Varies on Orifice Size)
Maximum Outlet Pressure
15 PSIG
Body, Bonnet, Diaphragm Material
Adjusting Screw: Aluminum, Body: Ductile Cast Iron, Bonnet: Aluminum, Closing Cap: Aluminum, Diaphragm: Nitrile, Lower Casing: Aluminum, Molded Seat Assembly: Nitrile, Orifice: Aluminum
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
