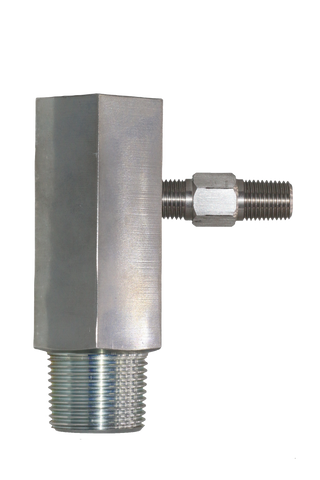

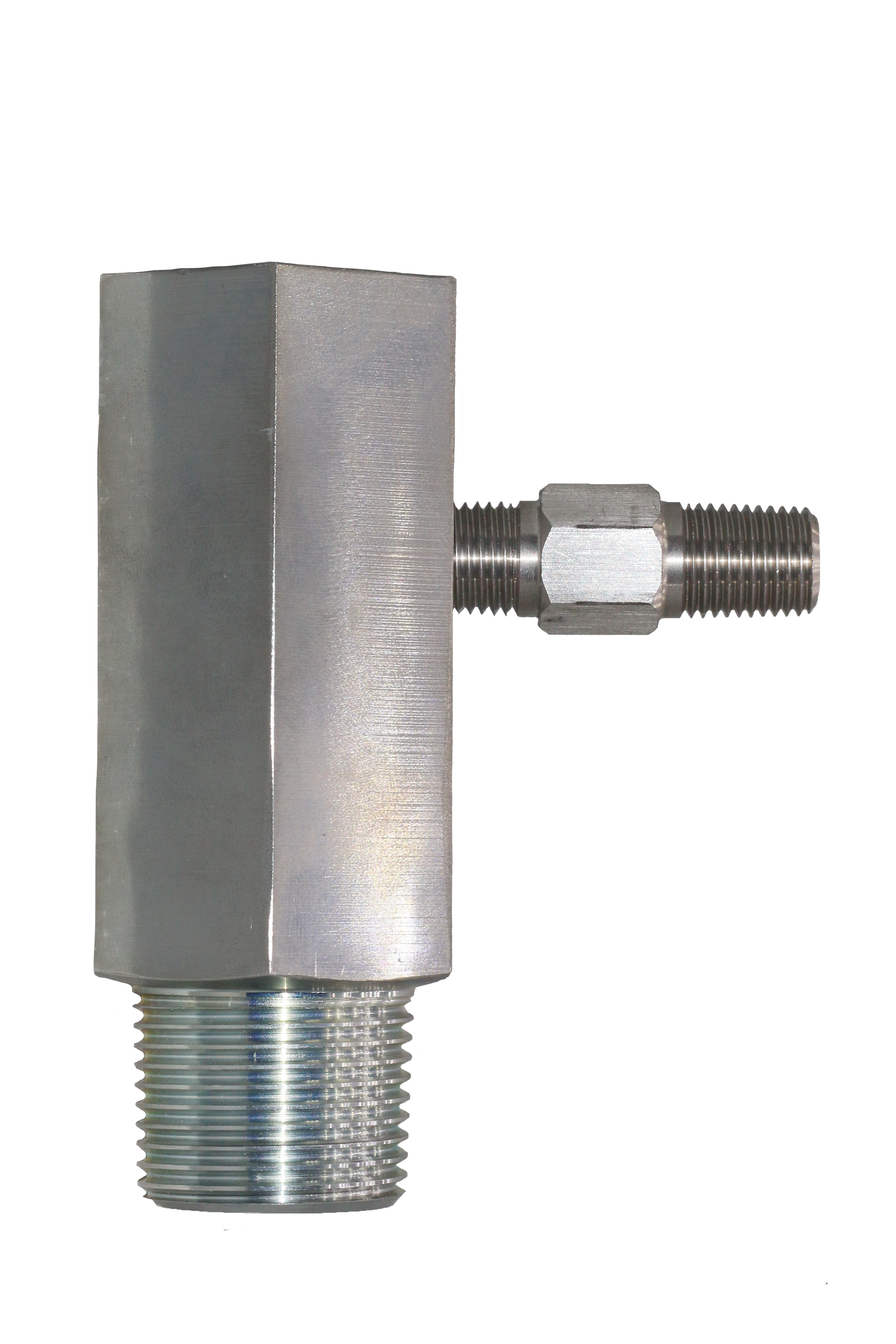

RT-XX Test Valve
Test valve installed between a pressure vessel and a pressure relief valve, allowing verification of the relief valve's function without pressurizing the vessel. Provides a controlled test point for in-service safety valve checks.
Applications:
- Pressure vessel safety checks
- In-service valve verification
Features:
- Allows relief valve testing without pressurizing vessel
- Available in 1" or 2" NPT body sizes
- Acetal spacer for internal ball control
- Carbon steel or optional stainless-steel body
- Simple disassembly for maintenance
Specifications
Weight
1.5 lb (1" unit); 5 lb (2" unit)
Case/Body
Carbon Steel
Port Size
1" or 2" NPT process connections
Body Sizes
1", 2" NPT
Connection
NPT
Connections
Male NPT threads
Body Material
Carbon Steel or Stainless Steel
Trim Material
Stainless Steel
Application(s)
Relief valve testing
Temperature Range(s)
-20° to 200°F (-29° to 93°C)
Maximum Inlet Pressure
3000 psig
Max Inlet Body Pressure
3000 psig
Valve Plug/Orifice Material
Acetal Spacer / Stainless Steel Connector
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
