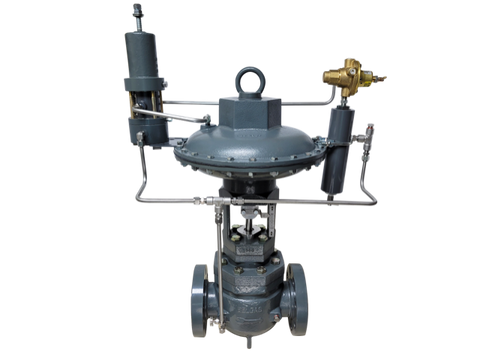

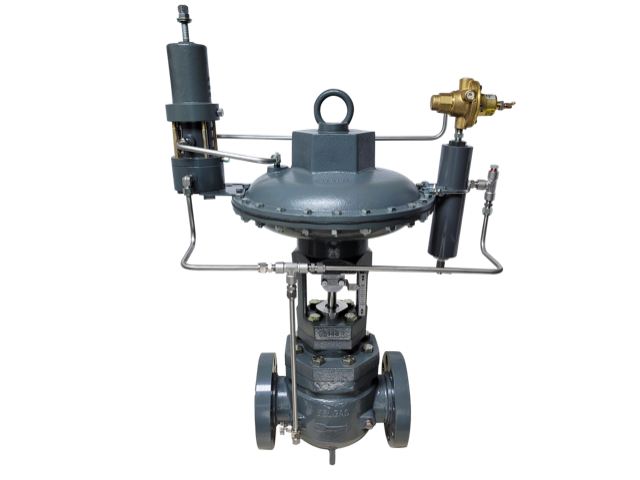

High Pressure Control Valve Package
BelGAS CP control valves can be paired with pneumatic pilots, I/P transducers or fully-electric actuators to create a regulator package. These packages can be used to maintain back pressure, downstream pressure or constant flow rates, as well as other typical control schemes found in oil and gas production. Pneumatic pilots have a control range from 5 psig up to 2500 psig, while I/P and electric controllers can utilize the full working pressure of the valve.
Applications:
- Dump valves
- Pressure/flow control with pilot
- Sour gas service (NACE options)
Features:
- Piston-balanced design for high flow and high pressure
- Designed for pressures up to 4000 PSIG
- NACE compliant construction option
Specifications
Body Sizes
2", 3", 4"
Connection
NPT, RF, or RTJ
Connections
Female NPT, Raised Face (RF), Ring Type Joint (RTJ)
Body Material
LCC Steel
Application(s)
High pressure / high flow control
Diaphragm Material
Nitrile or Fluorocarbon
Max Inlet Body Pressure
4000 psig
