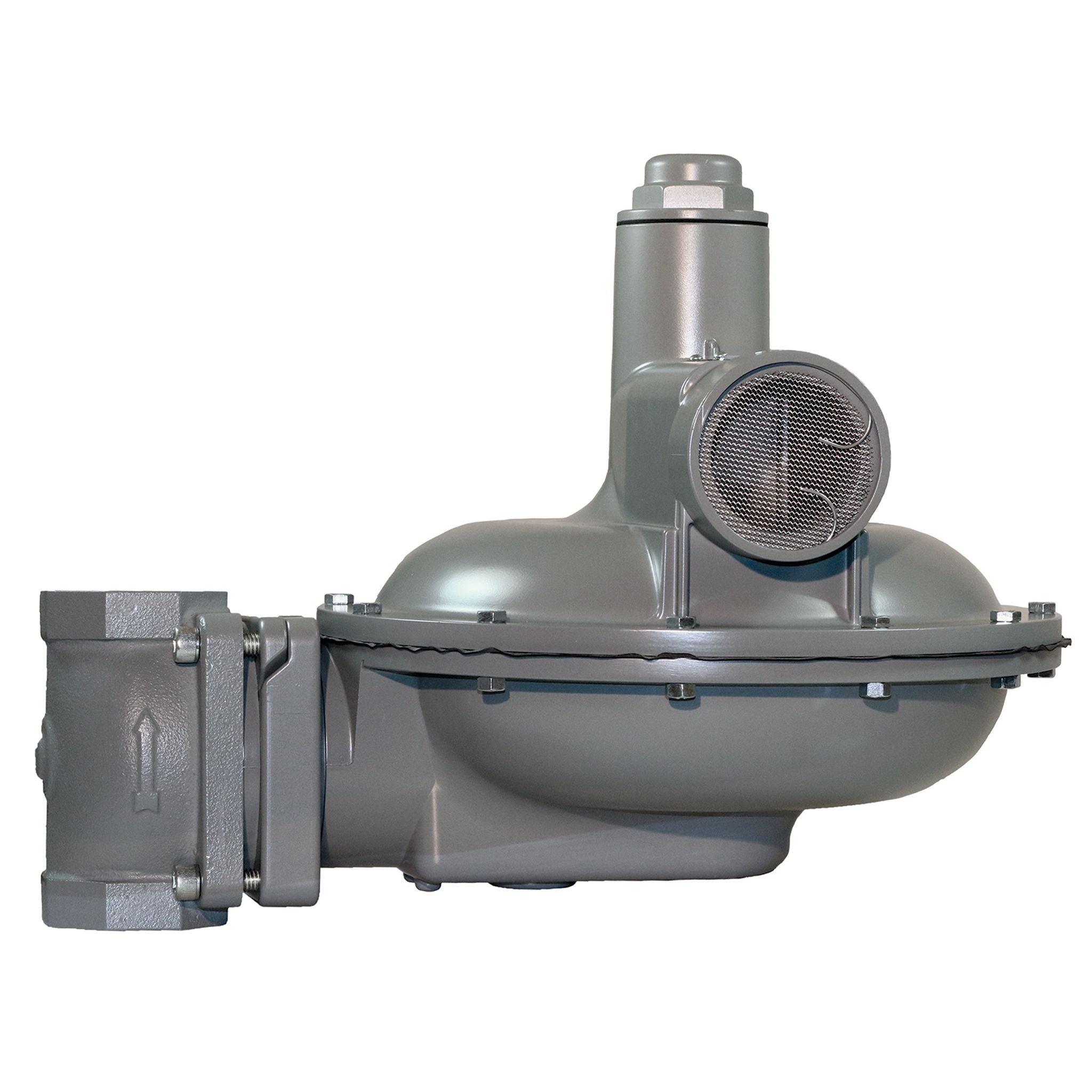

BelGAS 200 Series - P212 Gas Pressure Regulator with Enhanced Relief
The BelGAS P212 gas pressure regulator is a direct operating, spring-loaded adjustable regulator, used in applications where pressure reduction is required. The P212 is built on the reliable and time-proven P202 platform and has been enhanced to offer a full relieving regulator through the diaphragm relief device. Utilizing a 2.5" bonnet vent port, the P212 becomes a fully relieving pressure regulator. Available in pressure ranges from 2" of water column up to 5 PSIG, making them ideal for use in applications where wide variations in pressure reduction are also required. The BelGAS Type P212 is offered with a choice of ductile cast iron or WCB steel body, flanged or threaded.
Applications:
- Compressors
- Gas Engines
- Service Regulators
Features:
- Minimizes sudden downstream load changes
- Wide pressure range
- Full Relief Valve
Specifications
Model
P212
Options
Port Orientation Up (Standard) Down Right Left Bonnet Orientation 12 O'Clock 3 O'Clock (Standard) 6 O'Clock 9 O'Clock
Port Size
1.25", 1.5", 1.5" X 2", 2" NPT
Body Sizes
1.25", 1.5", 1.5" x 2"
Orifice Size
1/4" 3/8" 1/2" 3/4" 1" 1-3/16"
Spring Range
L Version 2 - 4.5" WC 4.98 - 11.20 3.5 - 6.5" WC 8.71 - 16.19 5 - 9" WC 12.45 - 22.41 6 - 14" WC 14.94 - 34.87 8.5 - 18" WC 21.17 - 44.83 14 - 30" WC 34.87 - 74.72 H Version 1 - 2 PSIG 68.94 - 137.89 1.5 - 3.25 PSIG 103.42 - 224.07 2 - 5 PSIG 137.89 - 344.73
Application(s)
Pressure Protection, Commercial, Industrial
Pilot Operated
No
Orifice Material
Aluminum
Connection
NPT,
Flanged
Diaphragm Material
Nitrile
Flange Type
125 FF Flanged,
150 RF Flanged
Product Description
Type P212 Gas Pressure Regulator
Max Inlet Body Pressure
125 PSIG (Varies on Orifice Size)
Maximum Outlet Pressure
15 PSIG
Body, Bonnet, Diaphragm Material
Adjusting Screw Aluminum Body Ductile Iron or WCB Steel Bonnet Aluminum Closing Cap Aluminum Diaphragm Nitrile Lower Casing Aluminum Molded Seat Assembly Nitrile Orifice Aluminum Flange Ductile Iron / WCB Steel
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
