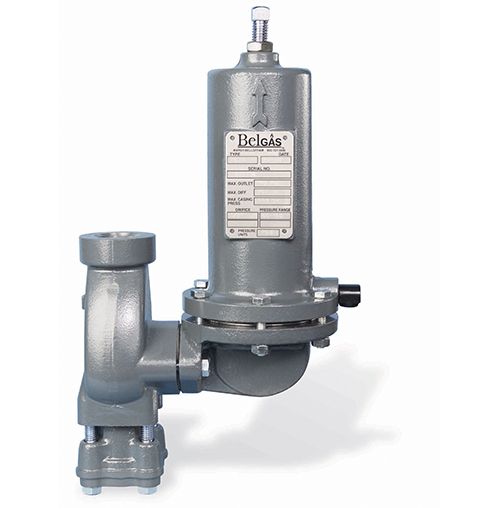

P630 High Pressure, High Flow Gas Pressure Regulators
The BelGAS P630 is a spring-loaded, direct-operated, high pressure, high flow gas pressure regulator. A heavy-duty construction incorporating stainless steel internal components and a powder-coated epoxy exterior finish makes it ideally suited for use within demanding oil and gas environments. All BelGAS P630 steel regulators meet NACE MR0175 material requirements for corrosive (sour gas) environments.
Applications:
- First Cut or Second Stage Regulator
- Farm Taps
- Transmission to Distribution Bridge
- High Pressure Process
- Fuel Gas
Features:
- Stainless steel internals as standard
- Steel units comply with NACE MR0175 material requirements for corrosive (sour gas) environments
- Suitable for pressure settings up to 500 PSIG
- Available in 1" and 2" end connections
- O-ring seat for bubble tight shut off
- Up to a 1/2″ diameter orifice
- Durable powder coated exterior
Specifications
Model
P630
Body Sizes
1" NPT, 2" NPT
Orifice Size
1/8", 3/16", 1/4", 3/8", 1/2"
Spring Range
Low Pressure Spring Ranges 3 - 10 / 0.2 - .7 8 - 20 / 0.6 - 1.4 17 - 30 / 1.2 - 2.1 27 - 40 / 1.9 - 2.8 High Pressure Spring Ranges 27 - 50 / 1.9 - 3.5 46 - 95 / 3.2-6.6 90 - 150 / 6.2-10.3 150 - 200 / 10.3-13.8 200 - 275 / 13.8-18.9 275 - 500 / 18.9-34.5
Seat Material
Nylon, TFE, Nitrile
Application(s)
Commercial, Industrial
Pilot Operated
No
Orifice Material
316 Stainless Steel
Connection
NPT,
Flanged
Diaphragm Material
Neoprene / Fluorocarbon
Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged
Product Description
Type P630 High Pressure, High Flow Gas Pressure Regulators (NACE)
Temperature Range(s)
20° to 160°F (29° to 66°C)
Max Inlet Body Pressure
Low Pressure Spring Range - 66 PSIG High Pressure Spring Range - 550 PSIG
Maximum Outlet Pressure
3-500 PSIG
Maximum Input/Supply Pressure
1500 PSIG
Body, Bonnet, Diaphragm Material
Body, Bonnet: Cast Iron Steel (1030 WCB) Diaphragm: Neoprene / Fluorocarbon Seat: Nylon, TFE, Nitrile Orifice: 316 Stainless Steel
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
