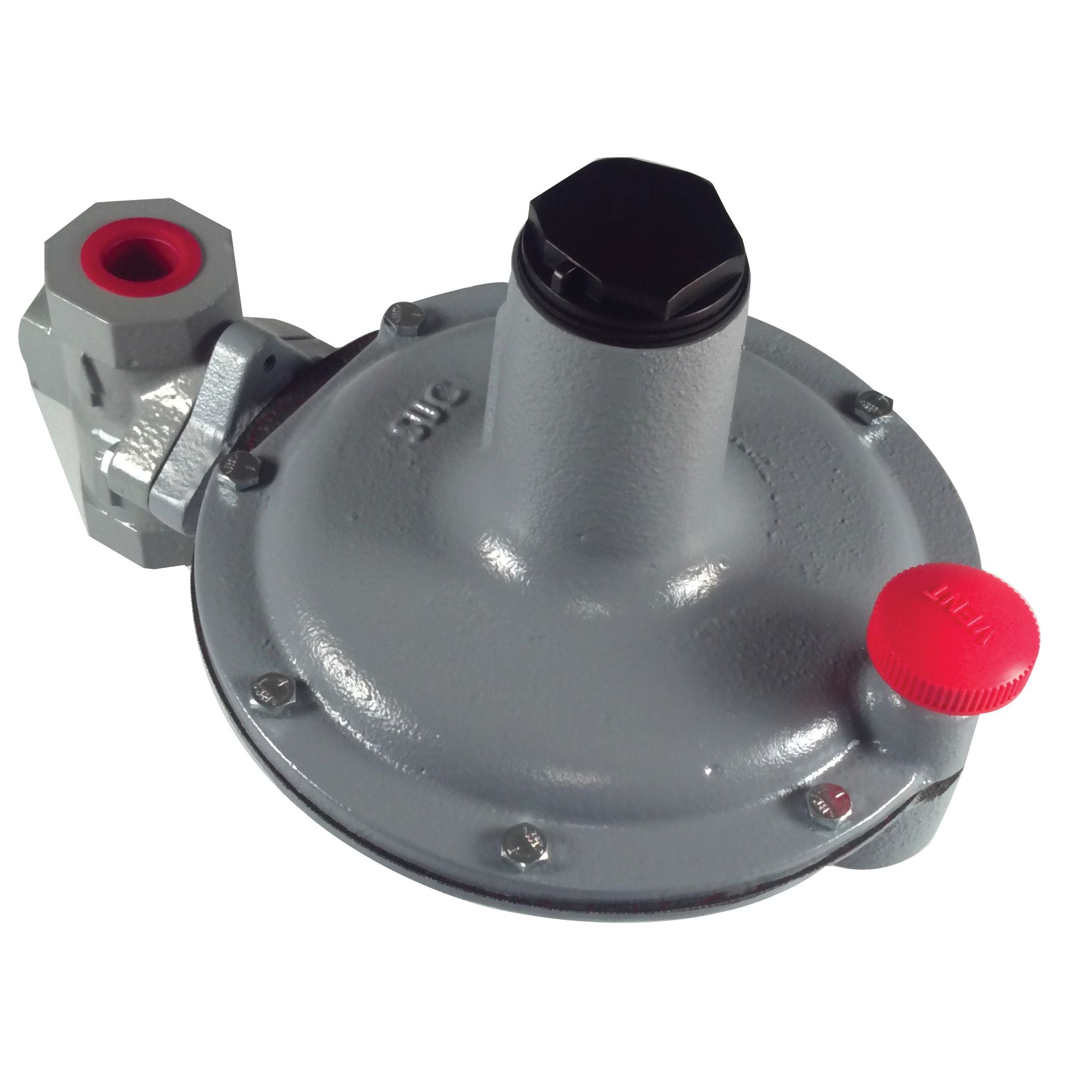

P600 Non-Relieving Gas Pressure Regulator
The BelGAS P600 is a non-relieving, direct-operated, pressure reducing regulator can be used as a monitoring regulator. It is designed to maintain a constant, preset downstream pressure.
Applications:
- Industrial and Commercial Gas Regulation
- Compressors
- Gas Engines
Features:
- Choice of 1″ or 3/4″ NPT port size
- Orifice sizes: 1/8″; 3/16″; 1/4″; 3/8″; 1/2″; 9/16″
- Operating temperature range of -20°F to 180°F (-29°C to 82°C)
- Available in six available range springs
Specifications
Model
P600-N
Port Size
3/4", 1" NPT
Connections
NPT
Orifice Size
1/8" 3/16" 1/4" 3/8" 1/2" 9/16"
Spring Range
4 - 8" WC / .01 to .02 - Red 7 - 16" WC / .017 to .04 - Olive 15" WC to 1.2 PSIG / .037 to .08 - Yellow 1.2 - 2.5 PSIG / .08 to .17 - Light Green 2.5 - 4.5 PSIG / .17 to .31 - Light Blue 4.5 -7 PSIG / .31 to .48 - Black
Seat Material
Nitrile, Aluminium
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
Nitrile
Product Description
Type P600-N Direct Operated Pressure Reducing Non-Relieving Regulator
Temperature Range(s)
-20° to 180°F (-29° to 82°C)
Max Inlet Body Pressure
With 1.2 PSIG (0.08 bar) or Less - 150 PSIG With 1.1 to 2.5 PSIG (0.08 to 0.17bar) - 150 PSIG With 2.5 to 7 PSIG (0.17 to 0.48 bar) - 150 PSIG All Varies on Orifice Size
Body, Bonnet, Diaphragm Material
Adjusting Screw: Zinc Body: Cast Iron Bonnet: Cast Iron Closing Cap: Acetal Diaphragm: Nitrile Housing: Cast Iron Molded Seat Assembly: Nitrile / Aluminium
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
