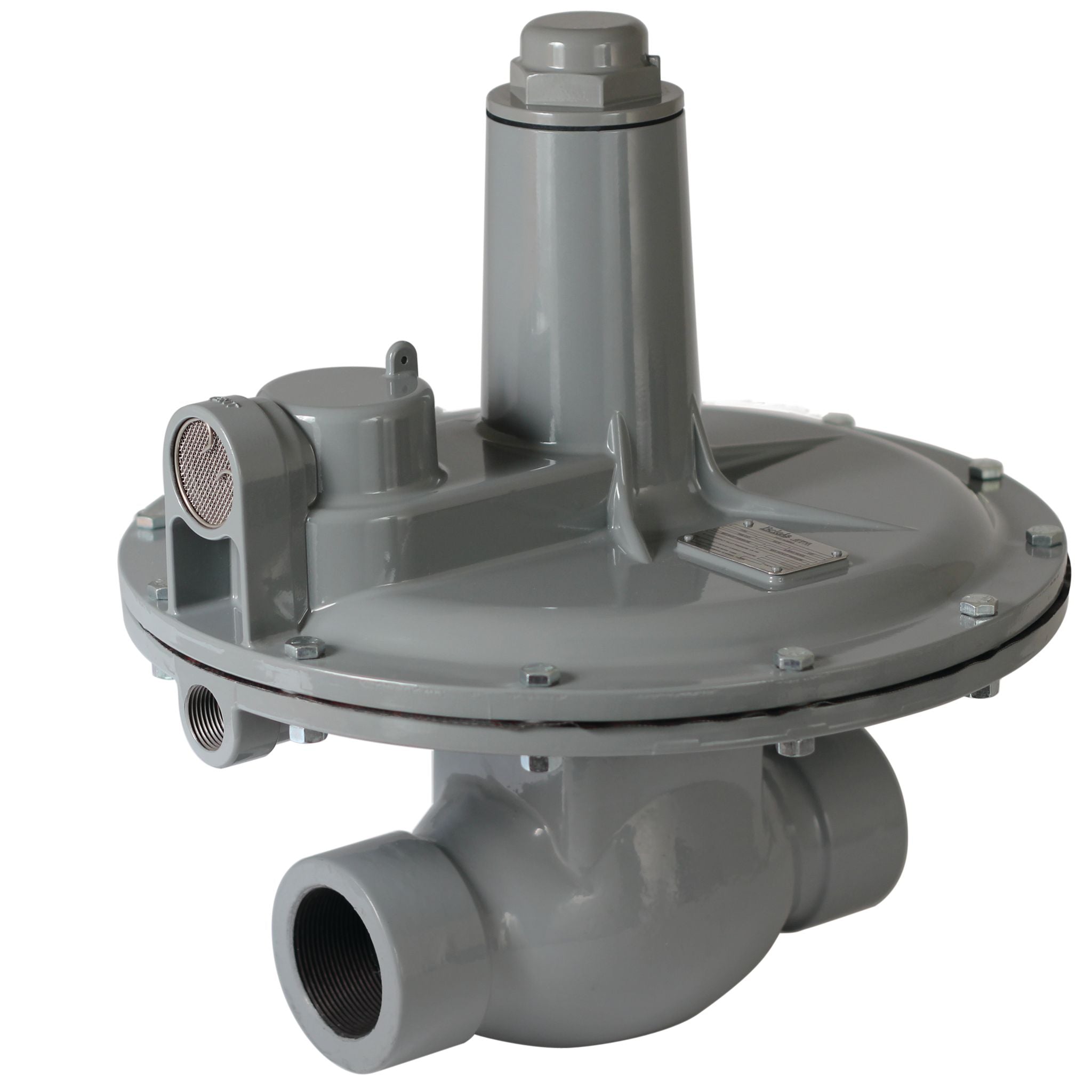

P133 Gas Pressure Reducing Regulator

The BelGAS P133 gas pressure reducing regulator is used in commercial and industrial applications such as furnace and burners, where accuracy and sensitivity are critical. Offered with a wide range of pressure capabilities within a single regulator, from 2" of water column up to 60 psig, the BelGAS P133 reduces the effects of supply pressure changes on output pressure via a balanced diaphragm design for accurate control. With user selection of appropriate options, the regulator can be further utilized in either low- or high-pressure applications. Units are designed to reliably operate over a temperature range of -20° to +150°F (-29° to +66°C). In addition, the bubble-tight shut-off feature makes the P133 a reliable means of supplying gas to furnaces, burners, light industrial heaters and other appliances. No seat-to-seat adjustment is required.

Find Your Part Number
P133 - non-relieving pressure reducing regulator, non-relieving regulator
P133 - non-relieving pressure reducing regulator, non-relieving regulator
Applications:
  • Industrial and commercial gas regulation
  • Natural gas and propane gas regulation
  • Gas engines
  • Compressors
  • Boilers
  • Furnaces
Features:
  • Suitable for monitoring
  • Balanced supply valve
  • Wide pressure range offering
Request a Quote
Specifications
Model
P133
Options
Port Orientation Up (Standard) Down Right Left Bonnet Orientation 12 O'Clock 3 O'Clock 6 O'Clock (Standard) 9 O'Clock Trim Material Nitrile Fluorocarbon Body Material Iron Steel
Port Size
2" NPT
Spring Range
L& H Versions only 2" - 4" WC 4.98 - 19.92 3.5" - 6" WC 8.71 - 14.94 5" - 9" WC 12.45 - 22.41 6" - 14" WC 14.94 - 34.87 8.5" - 18" WC 21.17 - 44.83 14" - 28" WC 34.87 - 69.74 0.75 - 2 PSIG 51.71 - 137.89 H Version Only 1.5 - 3.25 PSIG 0.103 - 0.224 2 - 5 PSIG 0.137 - 0.344 5 - 10 PSIG 0.345 - 0.689 K Version Only 6 - 20 PSIG 0.413 - 1.378 16 - 30 PSIG 1.103 - 2.068 26 - 40 PSIG 1.792 - 2.757 36 - 50 PSIG 2.482 - 3.447 45 - 60 PSIG 3.102 - 4.136 2 - 5 PSIG 0.137 - 0.344 4.5 - 10 PSIG 0.310 - 0.689
Application(s)
Commercial, Industrial
Pilot Operated
No
Orifice Material
Aluminum
Connection
NPT, Flanged
Diaphragm Material
Nitrile or Fluorocarbon
Flange Type
125 FF Flanged, 150 RF Flanged
Product Description
Type P133 Gas Pressure Reducing Regulator
Temperature Range(s)
-20°F to 150°F
Max Inlet Body Pressure
150 PSIG (Varies on Version)
Maximum Outlet Pressure
Set + 40 PSIG (Varies on Version)
Body, Bonnet, Diaphragm Material
Adjusting Screw Aluminum, Brass or Steel Body Ductile Cast Iron or WCB Steel Bonnet Aluminum or Cast Iron Cage Aluminum Diaphragm Nitrile or Fluorocarbon Lower Casing Aluminum or Steel Molded Seat Assembly Nitrile or Fluorocarbon Orifice Aluminum Upper Casing Steel
