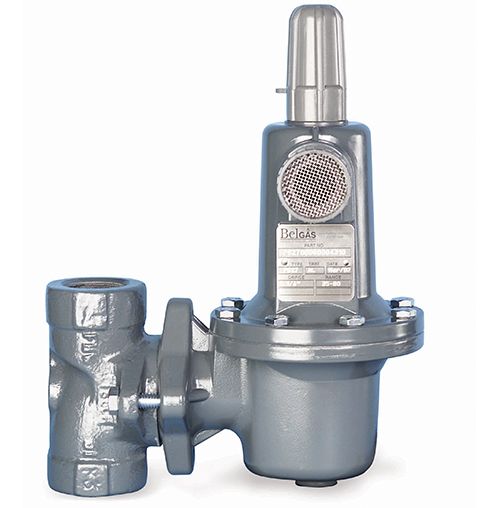

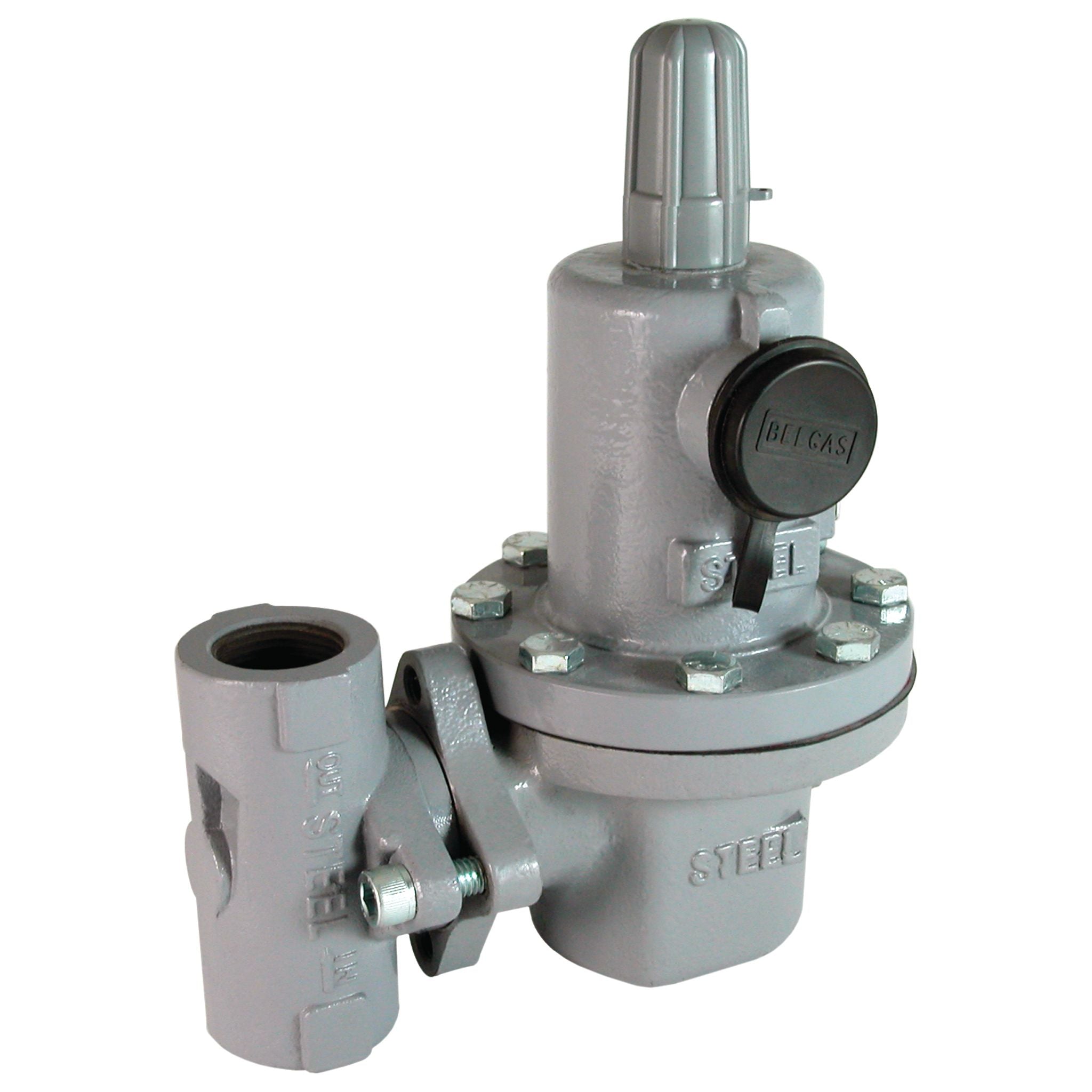

BelGAS 627 Series - W627 Liquid Gas Regulator
The BelGAS W627 is a spring-loaded, direct-operated regulator for liquid service. These regulators provide durability, from the powder-coated epoxy exterior finish, as well as installation versatility, from the multi-position body and spring case configurations. These regulators are also available in an external pressure registration model.
Applications:
- Industrial Chemical Processes
- Chemical Production
- Electronic Manufacturing
Features:
- Wide Range of Flow Capacities
- Durable Powder Coated Exterior
- Installation Versatility
- External Pressure Registration Model
Specifications
Model
W627
Options
Upstream control line construction Pressure gauge (0 to 160 PSIG / 0 to 11.0 BAR / 0 to 1.1 MPa) P590 Series Pilot Supply Filter
Application(s)
Industrial
Pilot Operated
No
Connection
NPT,
Flanged,
Socket Weld,
RTJ
Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged,
900 RTJ
Product Description
W627 Liquid Gas Regulator
Body, Bonnet, Diaphragm Material
Body Aluminum Spring Case Aluminum Body Plug Aluminum Valve Plug Nitrile (NBR) Spring Zinc-plated Steel Diaphragm Nitrile (NBR) or Fluorocarbon (FKM) Spring Seat Zinc-plated Steel Stem Guide Stainless Steel Adjusting Screw Zinc-plated Steel O-Rings Nitrile (NBR) or Fluorocarbon (FKM) Closing Cap Aluminum Connector Cap Stainless Steel
