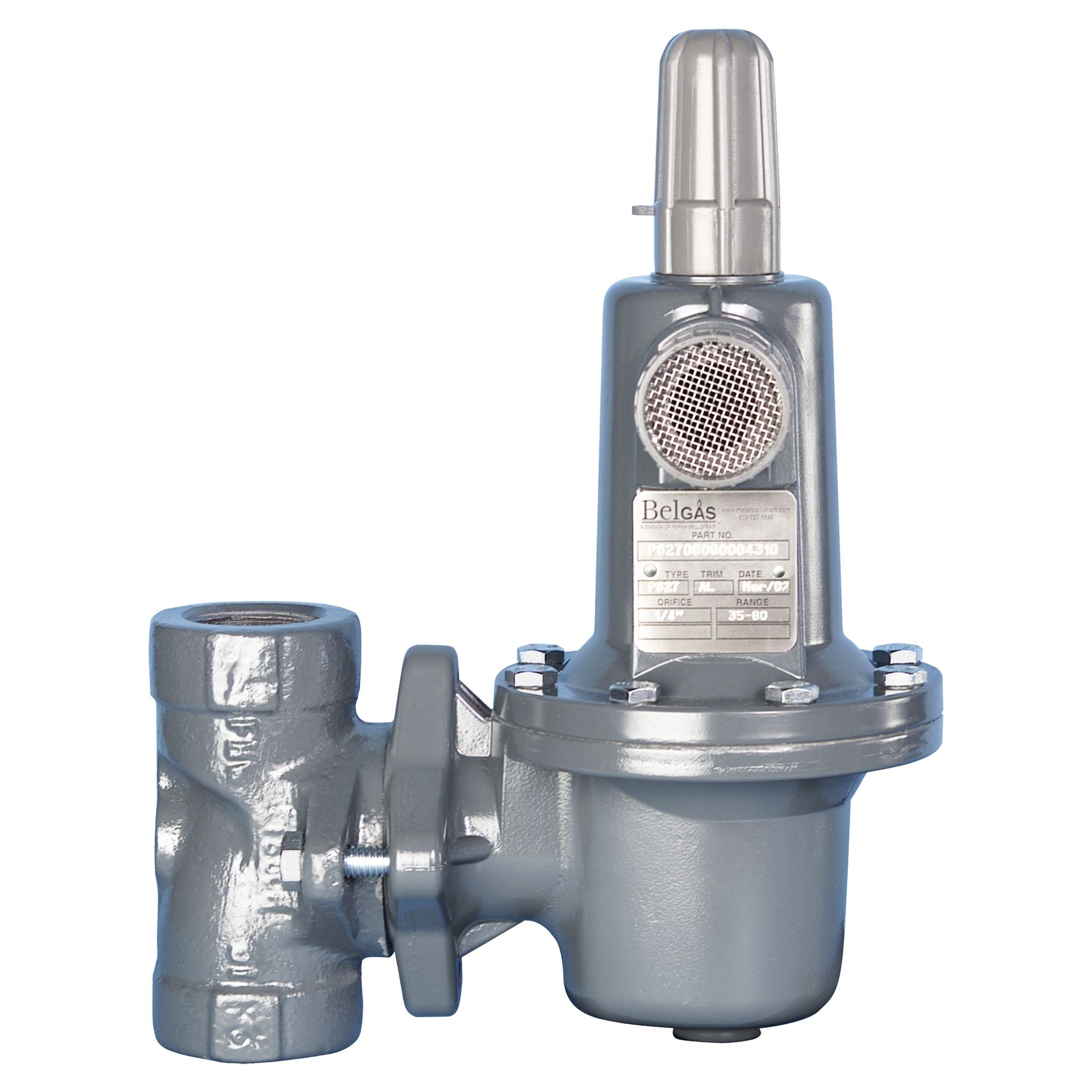

BelGAS 627 Series - P627 High Flow Gas Pressure Regulator
The BelGAS P627 is a spring-loaded, direct-operated, low and high gas pressure regulator, designed to support a variety of applications in the oil and gas industries. These regulators provide durability, from the powder-coated epoxy exterior finish, as well as installation versatility, from the multi-position body and spring case configurations. These regulators are also available in an external pressure registration model and NACE compliant construction. The P627 is also available with the choice of aluminum, steel, or LCC body, as well as bonnet and diaphragm cases. The gas pressure regulators also feature a wide range of flow capacities to suit a wide range of requirements.
Applications:
- Farm Tap Regulation
- Monitoring Regulators
- Gate Regulators
- Fuel Gas
- Gas Gathering
- Pressure Reduction
Features:
- Wide Range of Flow Capacities
- Durable Powder Coated Exterior
- Installation Versatility
- NACE Construction Available
Specifications
Model
P627
Body Sizes
1" NPT, 2" NPT, 3" NPT, 4" NPT
Orifice Size
3â„32" 1â„8" 3â„16" 1â„4" 3â„8" 1â„2"
Spring Range
5-500 PSIG
Seat Material
Nitrile, Nylon, Fluorocarbon
Application(s)
Industrial, Commercial
Pilot Operated
No
Orifice Material
Aluminum Stainless Steel (NACE only
Connection
NPT,
Flanged,
Socket Weld,
RTJ
Diaphragm Material
Nitrile (low pressure) or Neoprene (high pressure)
Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged,
900 RTJ
Product Description
Type P627 Low and High Gas Pressure Regulator
Temperature Range(s)
Steel, Iron Body: -20° to 180°F (29° to 82°C); CF8M Body: 40° to 180°F (40° to 82°C)
Max Inlet Body Pressure
Nylon Seat 2000 PSIG Steel / SS 1000 PSIG Ductile Iron 1485 PSIG Flanged Steel Nitrile Seat 1000 PSIG All Units Fluorocarbon Seat 300 PSIG All Units
Body, Bonnet, Diaphragm Material
Spring Case Aluminum
