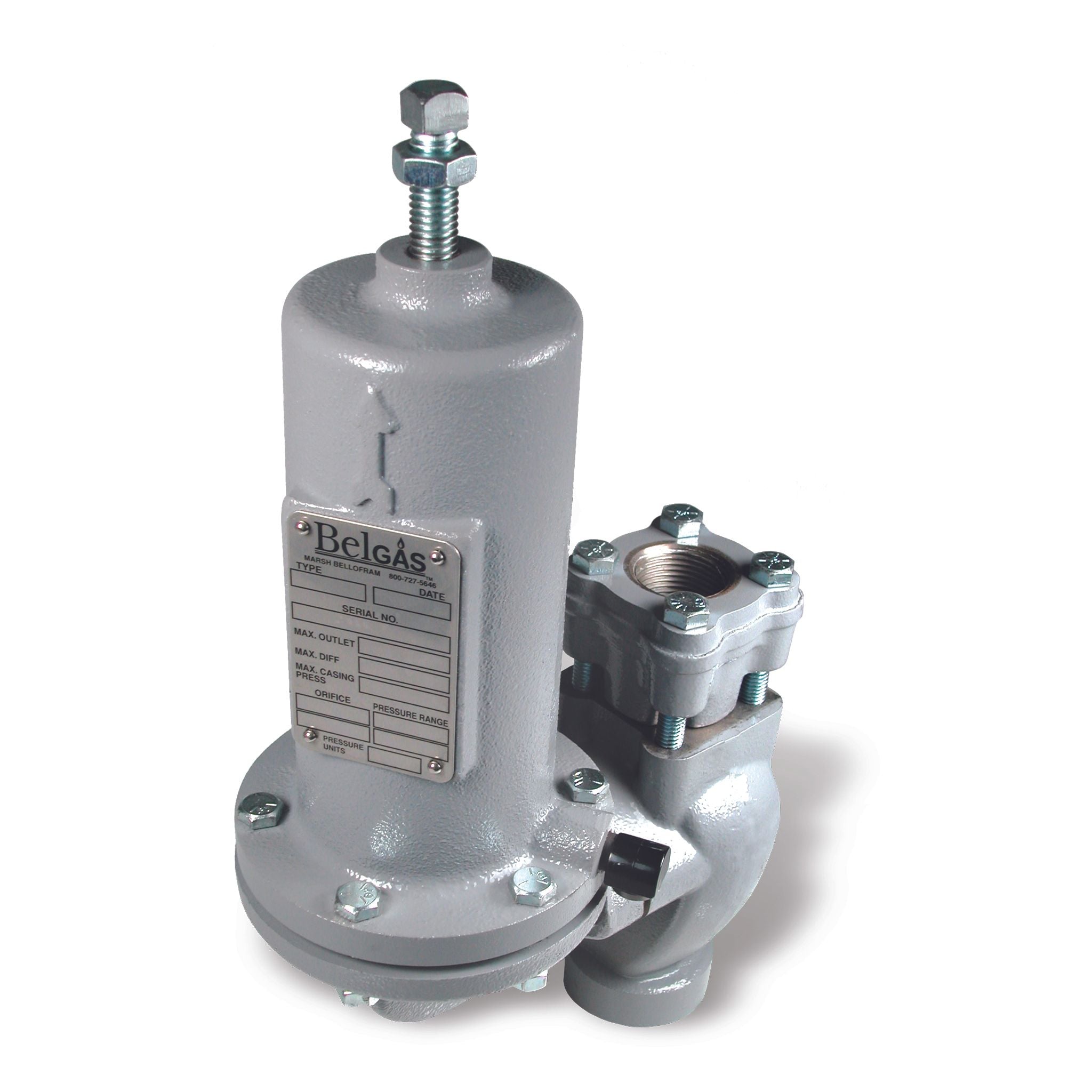

P630R High Flow Relief Valve/Back Pressure Regulator
The BelGAS P630R is a spring-loaded, adjustable relief valve/back pressure regulator, designed for relief pressure settings from 3 to 250 PSIG (0.21 to 17.3 BAR). The unit's heavy-duty construction incorporates the use of stainless steel internal components, along with a powder-coated epoxy exterior finish, making it ideally suited for the oil and gas industries. All units meet NACE MR0175 material requirements for corrosive (sour gas) environments.
Applications:
- Compressor Stations
- Refineries
- High Pressure Plants
Features:
- Stainless Steel Internals are Standard
- Steel Units comply with NACE MR0175
- Durable Powder Coated Exterior
- High Flow Capacities
Specifications
Model
P630R
Body Sizes
1" NPT, 2" NPT
Orifice Size
1/2"
Spring Range
Low Pressure 3 - 8 PSIG 6 - 17 PSIG 15 - 22 PSIG 20 - 35 PSIG 35 - 50 PSIG High Pressure 30 - 70 PSIG 50 - 95 PSIG 75 - 175 PSIG 150 - 250 PSIG
Seat Material
Nitrile
Application(s)
Pressure Protection, Commercial, Industrial
Pilot Operated
No
Orifice Material
316 Stainless Steel
Connection
NPT,
Flanged
Diaphragm Material
Neoprene Fluorocarbon
Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged
Product Description
Type P630R High Flow Gas Pressure Regulator
Temperature Range(s)
-20° to 180°F (-29° to 82°C)
Max Inlet Body Pressure
Relief Pressure Setting Plus 250 PSIG
Body, Bonnet, Diaphragm Material
Body, Bonnet: Cast Iron, Steel (1030 WCB) Diaphragm: Neoprene, Fluorocarbon Seat: Nitrile Orifice: 316 Stainless Steel
