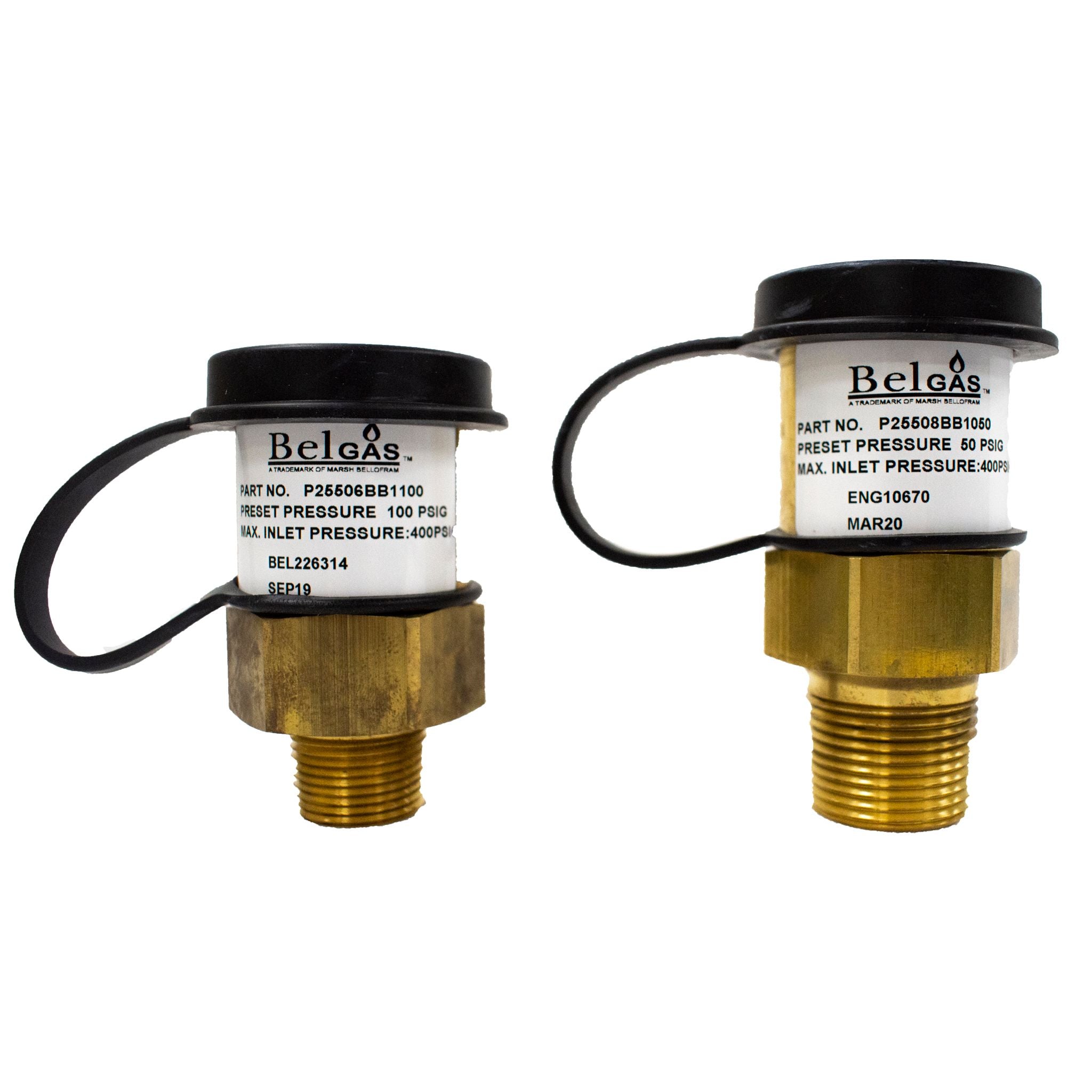

P255 High-Capacity Relief Valve
The P255 high-capacity relief valve is designed for use with BelGAS and other industry gas pressure regulators. A relief valve is primarily used to discharge excess system pressure to a safe point of release.
Applications:
- Oil and Gas Pressure Relief
- Tank Pressure Relief
Features:
- Zero leakage to 98% of set pressure
- Set pressure tolerance ± 5% of preset
- Reseal at 92% of set pressure
- Line sizes of 3/4″ and 1″ NPT
- Rubber rain cap included
Specifications
Model
P255
Body Sizes
3/4" NPT, 1" NPT
Spring Range
45-90 100-150
Application(s)
Pressure Protection, Commercial, Industrial
Pilot Operated
No
Connection
NPT
Product Description
Type P255 High-Capacity Relief Valve
Body, Bonnet, Diaphragm Material
Body: CDA360 Brass Spring: 302 Stainless Steel Retainer: CDA360 Brass Seal: Nitrile
