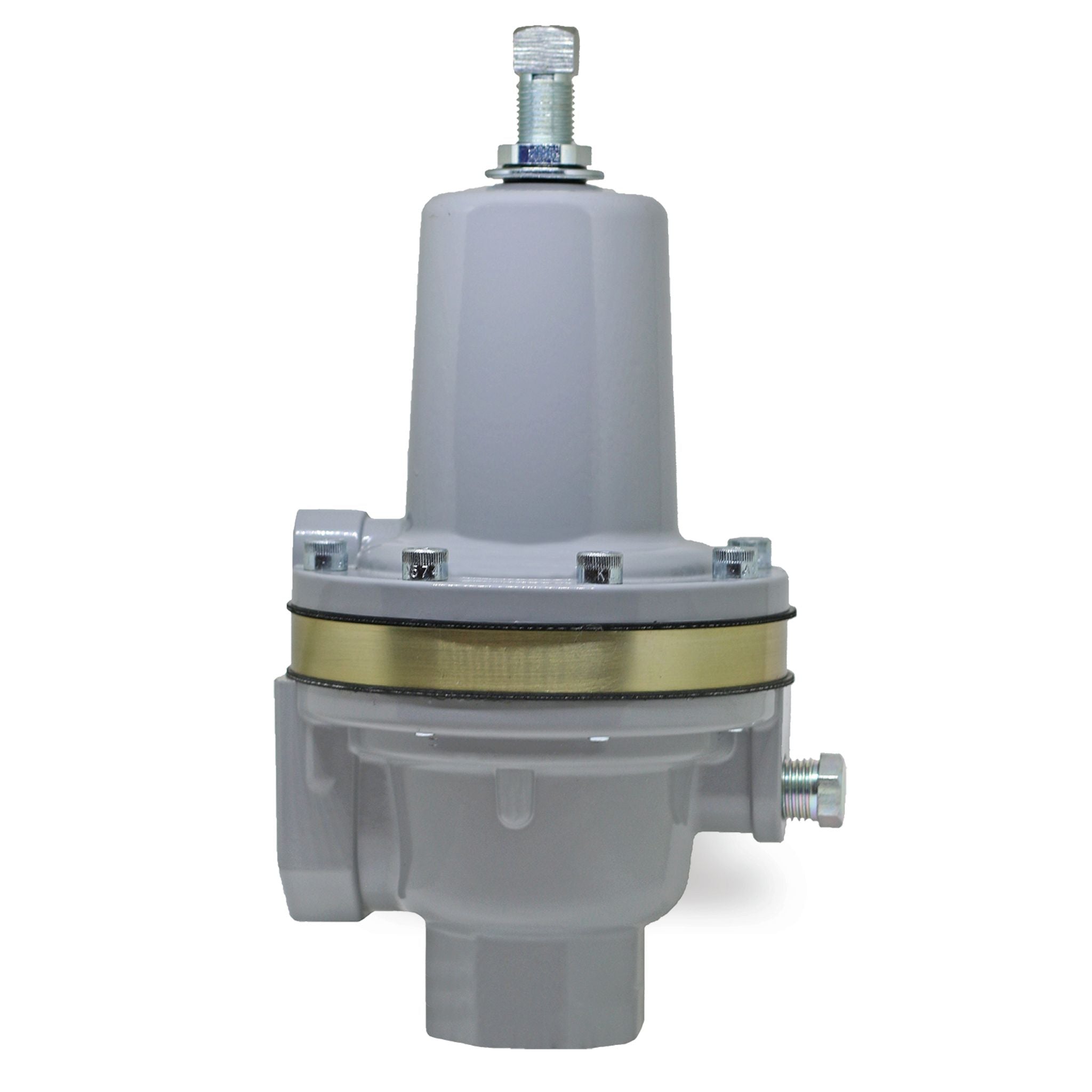

BelGAS 289 Series - P289RC High-Capacity Exhaust Booster
The P289RC is utilized in applications that require large pneumatic actuators and valve controls for rapid response. It is particularly well-suited for use with surge valves or recycle valves in compressor stations, accommodating compressor surges and sudden pressure fluctuations from output devices.
Applications:
- Surge and Recycle Valve Control in Compressor Stations
- Large Pneumatic Actuator Operation
- Rapid Response for Process Control
- Safety and Pressure Regulation
Features:
- High-Capacity Exhaust Booster
- 1/4" Spring Case Port, Connected to Controlling Instrument
- 1" Body Port, Connected to Actuator
- 0.7 PSIG Factory Set Opening
Specifications
Model
P289RC
Port Size
1" NPT
Body Sizes
3/4" x 1" NPT 1" NPT
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
Nitrile or Fluoroelastomer
Product Description
P289RC High-Capacity Exhaust Booster
Temperature Range(s)
-20° to 150°F with Nitrile and Neoprene Elastomers; 0° to 300°F with Fluoro Elastomers
Max Inlet Body Pressure
150 PSIG / 8.6 BAR
Body, Bonnet, Diaphragm Material
Body, Bonnet Aluminum Diaphragm Nitrile or Fluoroelastomer Gaskets Composite O-rings Nitrile or Fluoroelastomer O-ring Piston and Spacer Aluminum Stem Aluminum Spring Zinc-plated steel Diaphragm Piston Zinc-plated steel
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
