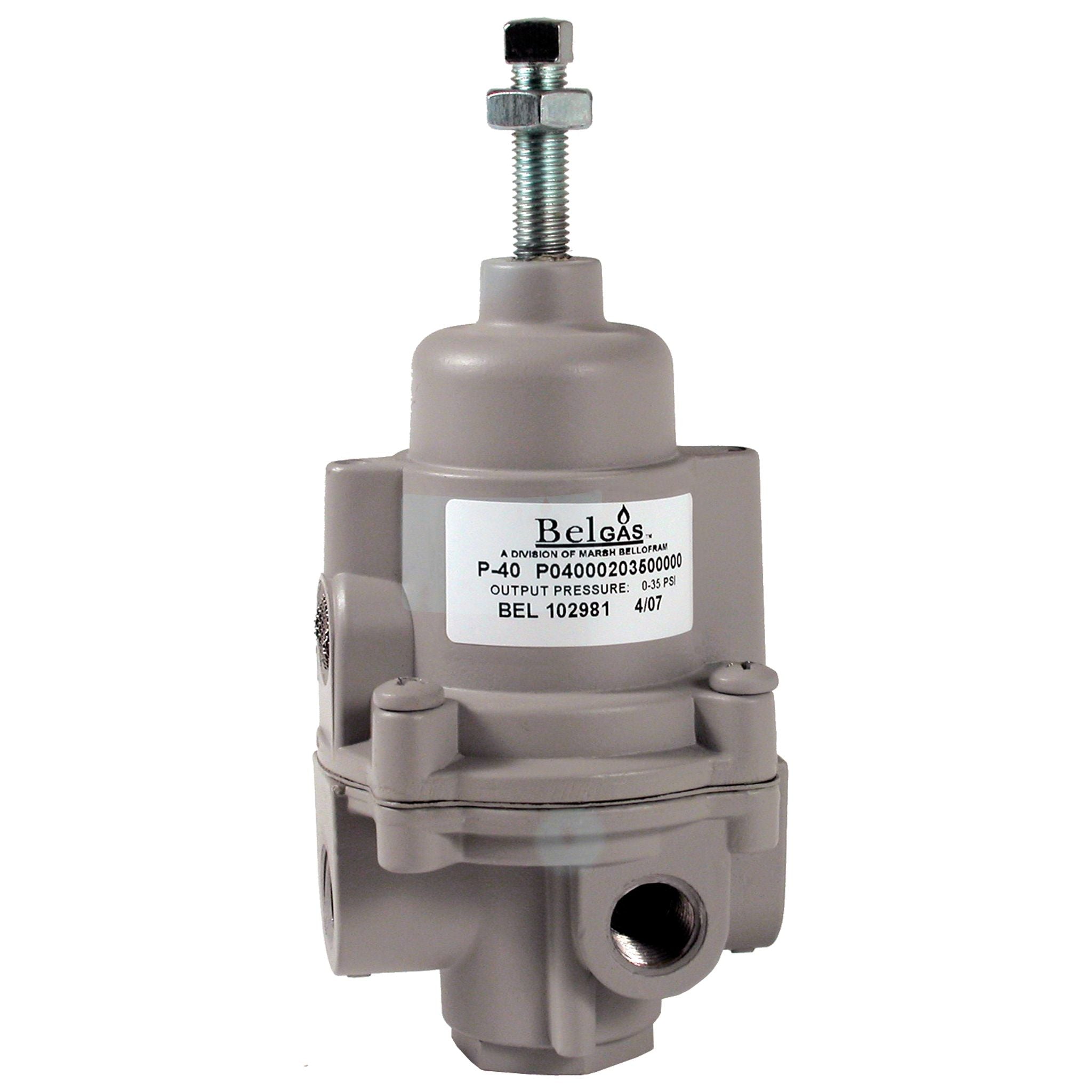

P40 & P40 NACE Compliant Natural Gas and Propane Regulators
The General Purpose P40 and P40 NACE Natural Gas and Propane Regulators are reliable precision units designed for instrumentation and general purpose use in both standard (P40), and corrosive environments (P40 NACE). The P40 NACE complies with NACE material requirement MR0175 for sulfide stress cracking resistant metallic material for oil field equipment. These regulators are generally superior in regulated pressure vs. flow, forward-to-reverse flow offset, supply pressure sensitivity, repeatability and stability.
Applications:
- Instrumentation and general purpose use in both standard (P40), and corrosive environments (P40 NACE).
Features:
- Superior regulation characteristics
- Rugged, corrosion-resistant construction
- Economical
- Self-relieving
- Standard tapped vent
- Excellent stability and repeatability
- Soft relief seat on P40
- Several mounting options
Specifications
Size
2.5" X 2.5" X 5.63" (63.5 X 63.5 X 143 mm)
Model
P40 & P40 NACE
Options
Standard, Knob Adjustment
Mounting
Pipe, Panel or Bracket
Port Size
1/4" NPT
Sensitivity
1" ( 25.4 mm) WC
Spring Range
0-10 PSIG (0-0.7 BAR), 0-35 PSIG (0-2.4 BAR) 0-60 PSIG (0-4.1 BAR), 0-120 PSIG (0-8.3 BAR)
Flow Capacity
20 SCFM ( 565 LPM)
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
P40 Regulator Buna-N elastomer with Polyester Fabric P40 NACE Regulator Fluoroelastomers, Polyester
Product Description
Type P40 and Type P40 NACE Compliant Natural Gas and Propane Regulators
Temperature Range(s)
P40: 0° to 160°F (-18° to 71°C); P40 NACE Regulator: 0° to 180°F (-15° to 82°C)
Maximum Input/Supply Pressure
250 PSIG (17.2 BAR)
Body, Bonnet, Diaphragm Material
P40 Regulator Body: Diecast Aluminum with Vinyl Paint Adjusting Screw: Plated Steel Trim: Plated Steel, Brass, Acetal Resin Diaphragm: Buna-N elastomer with Polyester Fabric Knob: Phenolic Plastic (option) Spring: Music Wire P40 NACE Regulator Body: Diecast Aluminum with Epoxy Paint Adjusting Screw: Plated Steel Trim: Plated Steel, Stainless Steel, Acetal Resin Diaphragm: Fluoroelastomers, Polyester Valve Spring: Inconel, Range Spring: Music Wire
Total Air Consumption @ Maximum Output
P40 Regulator 0.1 SCFH (0.05 LPM) P40 NACE Regulator 6 SCFH (2.8 LPM)
Exhaust Capacity (5 PSIG above 20 PSIG set point)
0.1-0.45 SCFM Typical (2.8-12.7 LPM)
Effects of Supply Pressure variation (25 PSIG) on Outlet Pressure
< 0.2 PSIG (0.01 BAR)
Effects of Changes in Flow on Regulated Pressure (100 PSIG/6.9 BAR supply)
4 PSIG ( 0.3 BAR) over flow 10 SCFM(283 LPM) (1â„4 NPT, 20 PSIG / 1.4 BAR set point)
