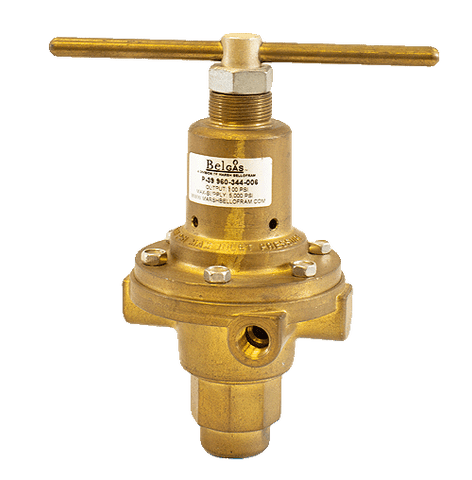

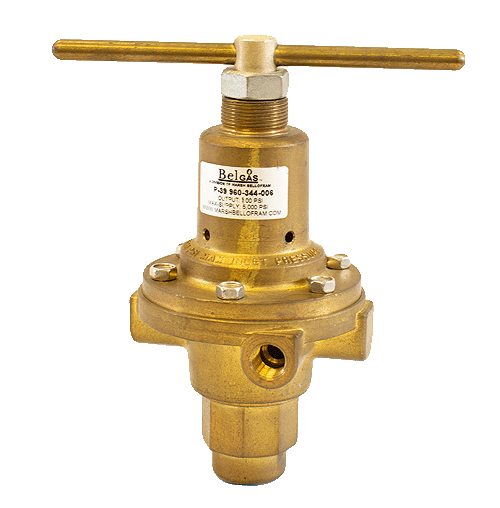

P39 High Pressure Gas Regulator
The BelGAS P39 gas pressure regulator has the industry's largest selection of outlet pressures. Units are offered with a choice of three different seat materials, allowing the user to meet unique application requirements. In addition, our broad selection of six different outlet pressure spring ranges allows for more precise regulation of downstream pressure for better process control. Piping designs can be simplified by using any one (or all) of the regulator's three standard outlet ports.
Applications:
- First Cut of High-Pressure Natural Gas to Control Valve Supply
- Natural Gas Instrumentation Columns
- First Cuts to Any Downstream, Low Flow Application, such as: Catalytic Heaters, Valve Actuators, Pressure Controllers, Chemical Injection Pumps
Features:
- Industry's largest selection of outlet pressures
- Only regulator of its type with three outlet ports
- Four-seat valve disk block with 90° rotation capabilities
- Choice of easily interchanged tamper-resistant or T-handle adjustment
- Optional tapped vent on bonnet
- Stainless steel version (P39SS) is compliant with NACE MR0175
- Choice of seat materials allows users to meet unique application requirements
Specifications
Model
P39
Port Size
1/4", 1/2" NPT
Orifice Size
5/64"
Spring Range
0 - 30 PSIG / 2.1 BAR 0 - 60 PSIG / 4.1 BAR 0 - 120 PSIG / 8.3 BAR 0 - 150 PSIG / 10.3 BAR 0 - 225 PSIG / 15.5 BAR 0 - 500 PSIG / 34.5 BAR
Seat Material
Nylon, TFE, or PTFE
Application(s)
Industrial
Pilot Operated
No
Body Inlet Size
1/4 NPT, 1/2 NPT
Body Outlet Size
1/4 NPT, 1/2 NPT (3 Ports)
Connection
NPT
Diaphragm Material
302 Stainless Steel or Monel 400
Product Description
Type P39 Configurable Gas Pressure Regulator
Temperature Range(s)
40° to 225°F (46° to 106°C)
Max Inlet Body Pressure
6000 PSIG, 414 BAR
Body, Bonnet, Diaphragm Material
Body, Bonnet, Bottom Plug: Brass, Nickle Plated Brass, or Stainless Steel Tamper Resistant Cover: Brass, Nickle Plated Brass, or Stainless Steel Diaphragm: 302 Stainless Steel or Monel 400 Seals: TFE, Nitrile or TFE/Neoprene, Valve Spring: 17-7PH Stainless Steel or MP35N (UNS30035) Range Spring: Spring Steel, Chrome Silicon Seat Material: Nylon, TFE, or PTFE
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
