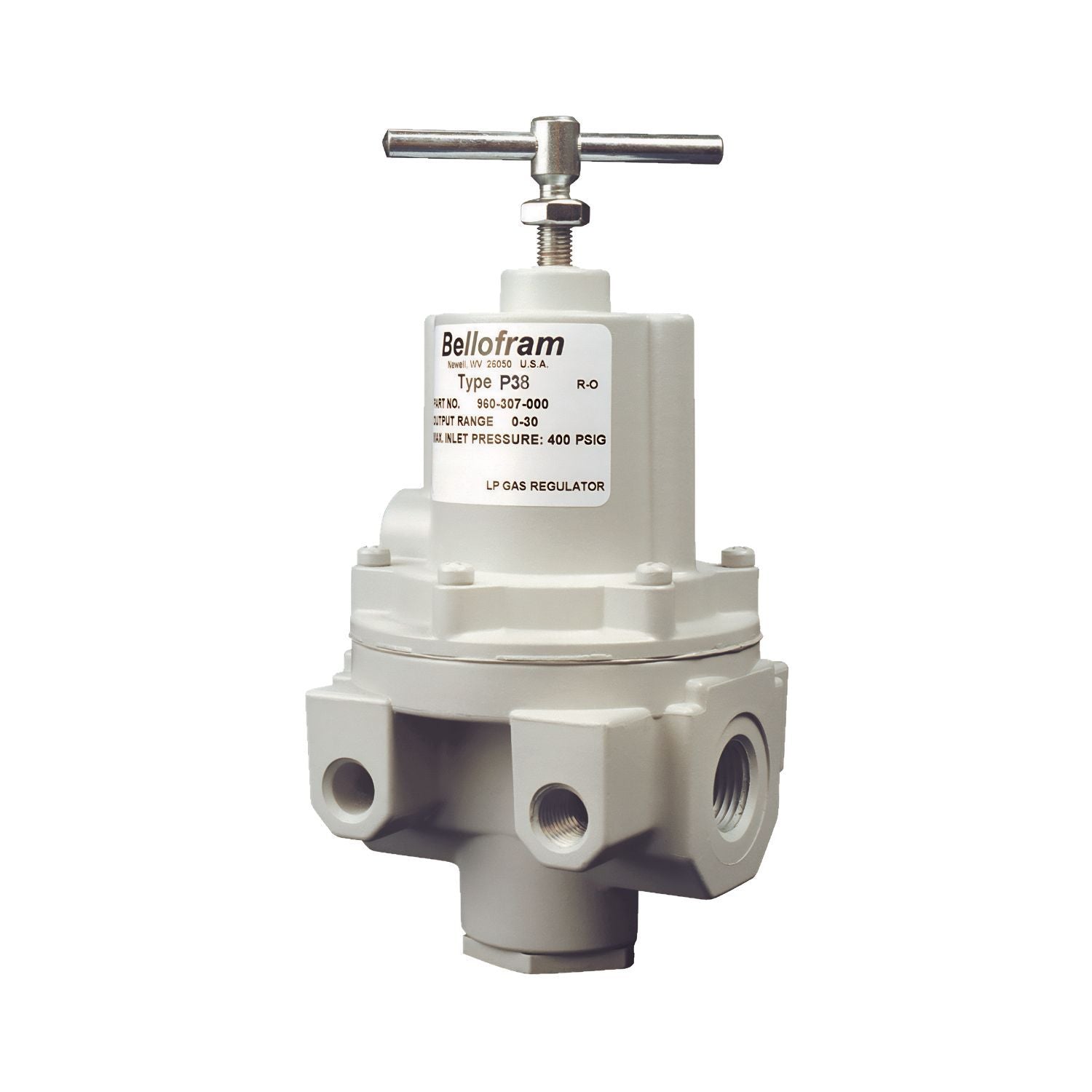

P38 Non-Relieving Gas and Propane Regulator
The BelGAS P38 Non-Relieving Gas and Propane Regulator is a diaphragm-operated device, using a patented balanced pintle design to eliminate unsteady changes in outlet pressure due to inlet pressure fluctuations. The use of a relief valve is recommended for this product in accordance with NFPA 58.
Applications:
- Pneumatic Controllers
- Valve Positioners
- Actuation
- Fuel Gas
- Compressed Air
Features:
- Balanced pintle design
- Exceptional flow capacity
- Bubble tight/non-relieving
- 27 Mbtu/hr (260 scfm)
- High volume applications
- Minimal effect on output pressure from variation of supply pressure
- UL listed
- Bellofram Rolling Diaphragm
Specifications
Model
P38
Port Size
3/8", 1/2", 3/4", 1" NPT
Sensitivity
1/2" WC
Spring Range
0-30, 0-60, 0-125 PSIG (0-2, 0-4, 0-8 BAR)
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
Nitrile Elastomer with Polyester Fabric
Product Description
Type P38 Non-Relieving Gas and Propane Regulator
Max Inlet Body Pressure
400 PSIG (28 BAR)
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
