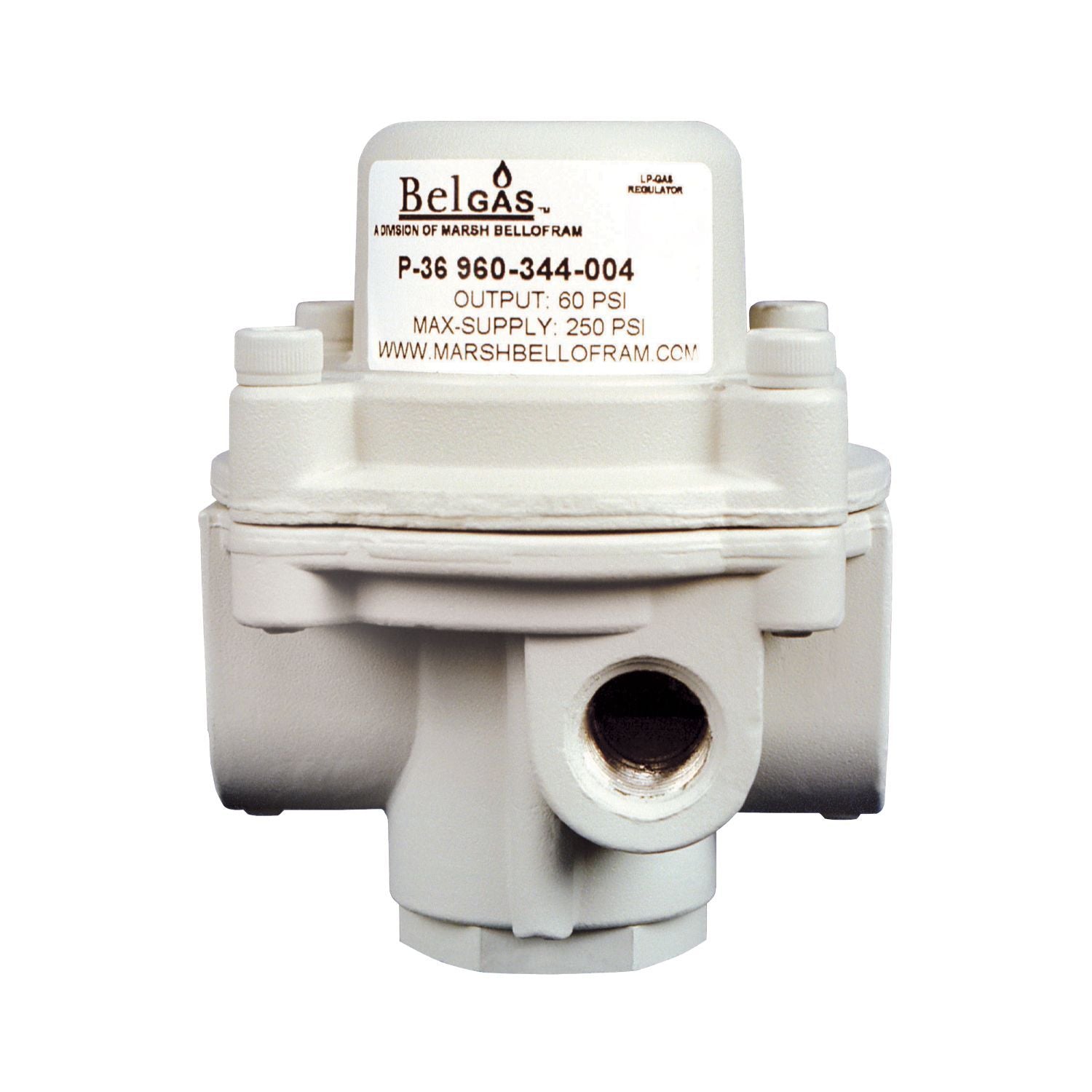

P36 Preset Gas Pressure Regulator
The BelGAS P36 gas pressure regulator is preset to your required output pressure. Ideal for areas requiring tamper resistant components or where incidental re-adjustment is a concern. The use of a relief valve is recommended for this product in accordance with NFPA 58.
Applications:
- Pneumatic Controllers
- Valve Positioners
- Actuation
- Fuel Gas
- Compressed Air
Features:
- 60-mesh screen
- Harmful particles blocked
- UL listed (Standard P36)
- Non-Relieving
- NACE construction available
Specifications
Model
P36
Port Size
1/4" NPT
Sensitivity
1" WC
Spring Range
0-20, 20-40, 40-60 PSIG (0-1.4, 1.4-2.8, 2.8-4 BAR)
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
Nitrile Elastomer with Polyester Fabric
Product Description
Type P36 Preset Gas Pressure Regulator
Max Inlet Body Pressure
250 PSIG (17 BAR)
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
