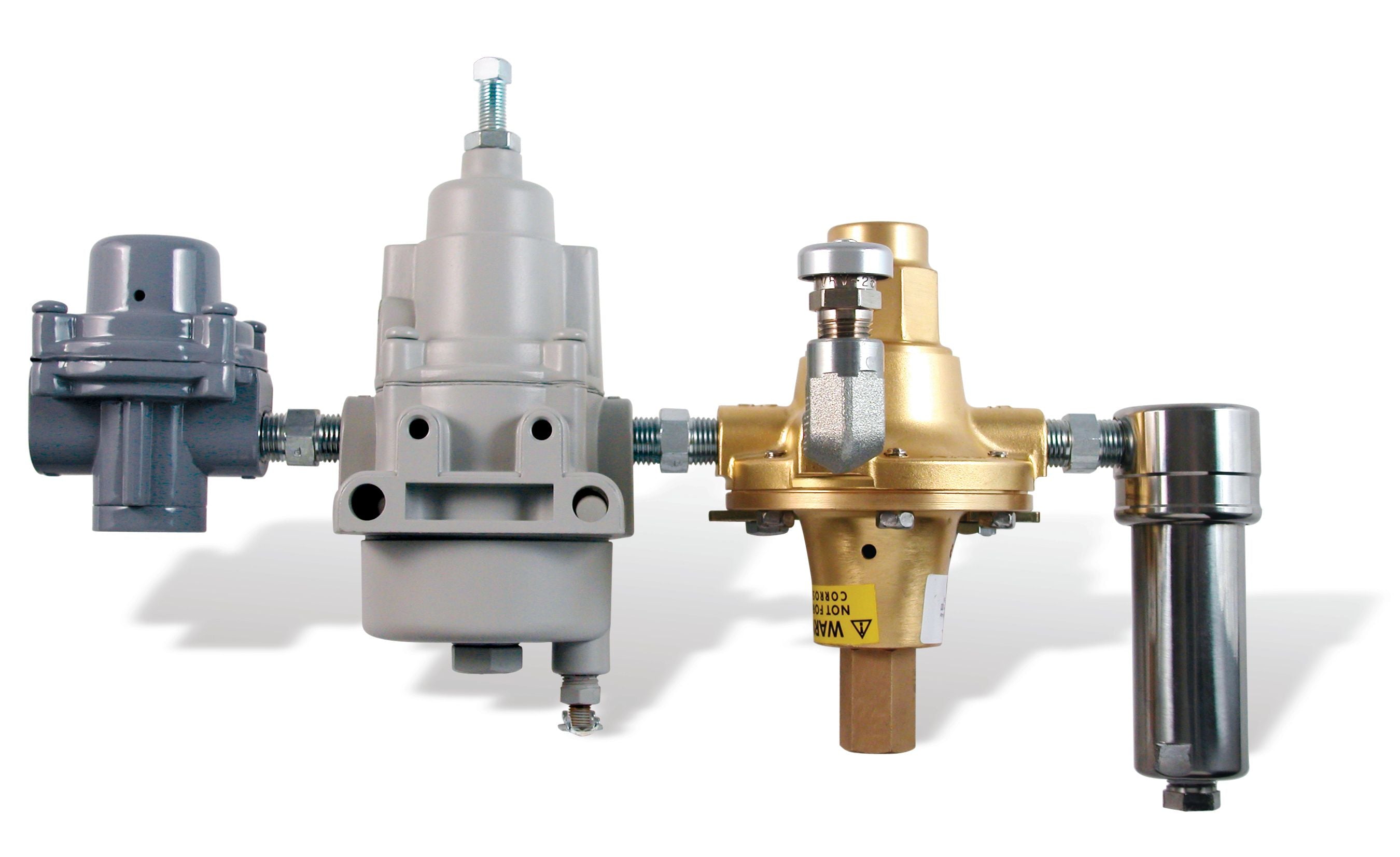

P1367 Manifold System
The P1367 is designed to provide two-stage, filtered distribution of gases. The P1367 also provides the added benefit of relief valve protection. The P1367 offers customers a complete package for working pressures of up to 4000 PSIG (NACE version) within industrial control system applications. Additional features include overpressure safety protection, installation flexibility, and NACE compliant construction capabilities.
Applications:
- Two-Stage Gas Pressure Regulation
- Inlet and Outlet Gas Filtration
- Odorizers
Features:
- Overpressure Protection
- Installation Flexibility
- NACE Capability
Specifications
Model
P1367
Mounting
Casing Mounting Bracket, Yoke Mounting Bracket
Port Size
Inlet and Outlet - 1/4 NPT P800 Vent - 1/2 NPT with Removable Screen
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Product Description
Type P1367 Pneumatic Supply Pressure Manifold System
Temperature Range(s)
-20° to 160°F (-29° to 66°C)
Max Inlet Body Pressure
4000 PSIG - Stainless Steel / 275 BAR 2150 PSIG - Aluminum / 148 BAR
Maximum Outlet Pressure
20 PSIG Setpoint, or 35 PSIG Setpoint
Find Your Part Number
Not sure? Call for help. Phone: 1-800-833-3127
